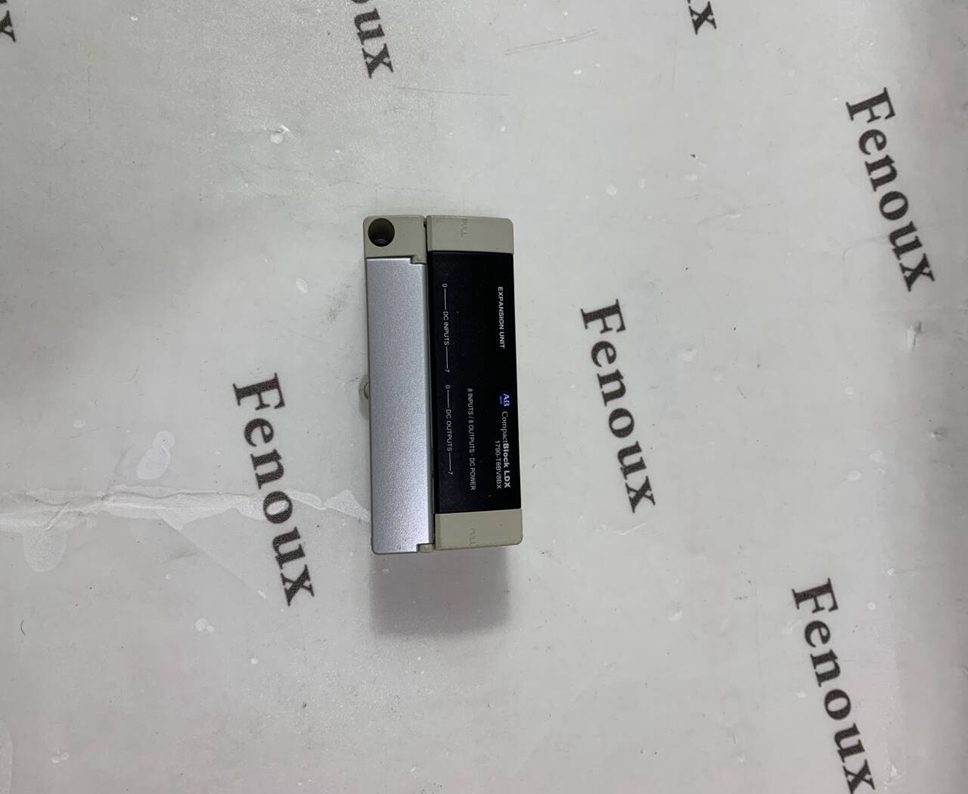

AB 1790-T8BV8BX

ATTENTION: This equipment is sensitive to electrostatic discharge, which can

cause internal damage and affect normal operation. Follow these guidelines

when you handle this equipment:

• Touch a grounded object to discharge potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on component boards.

• Do not touch circuit components inside the equipment.

• Use a static-safe workstation, if available.

• Store the equipment in appropriate static-safe packaging when not in use.

Description:

Mount the expansion block by connecting it to a previously-installed

CompactBlock LDX I/O base or expansion block.

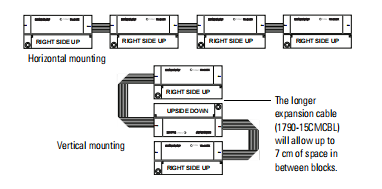

Beginning with the base block, you can mount your expansion blocks either horizontally

or vertically:

• horizontally (left to right) – add expansion blocks in an end-to-end

configuration

• vertically (up or down) – add expansion blocks either up or down in a

back-to-back configuration. In this configuration, you must use the optional

15cm ribbon cable (1790-15CMCBL) and alternately position the blocks in a

right-side up, upside-down

fashion.

You can mount your blocks on a panel or DIN rail as described in the following section.

Panel Mounting

1. Place the block against the panel where you want to mount it.

2. Gently pull and position the expansion cover to the left.

3. Place a center punch, nail or similar device through the mounting holes in the

block and make two marks on the panel (lower left and upper right corners of the

module).

4. Remove the block and drill two holes in the panel to accommodate each of the

mounting screws.
