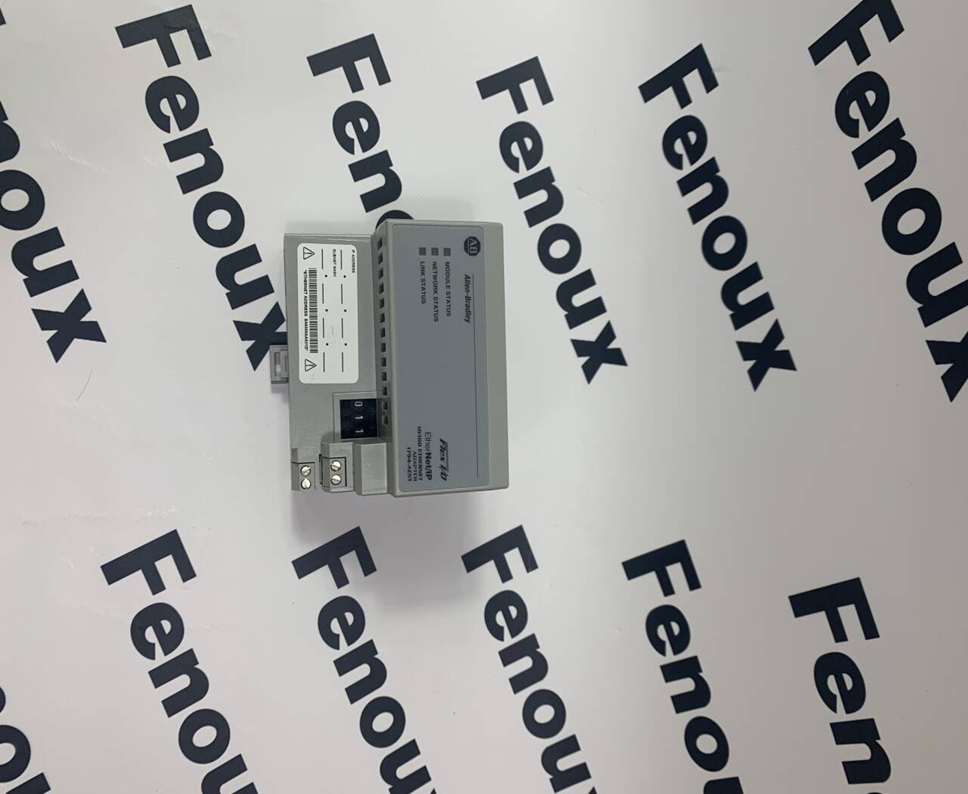

AB 1794-AENT EtherNet/IP FLEX I/O Adapter Module

Product Overview

The Allen-Bradley 1794-AENT is a versatile EtherNet/IP FLEX I/O adapter module designed to connect a variety of Allen-Bradley I/O modules to an EtherNet/IP network. This module serves as a bridge between the

physical I/O devices and the control system, allowing for efficient and flexible data exchange.

Key Features and Specifications

• Network: EtherNet/IP

• I/O Module Capacity: 8

• Communication Rate: 10/100 Mbps

• Ethernet Connector: RJ45 Cat5

• Flexbus Output Current: 640 mA max



• Power Supply Input Voltage: 24V DC

• Operating Voltage Range: 19.2-31.2V DC

• Power Consumption: 9.6 W at 24V

• Indicators: Module Status, Network Status, Link Status

Product Advantages

• Flexibility: Supports a wide range of Allen-Bradley I/O modules, providing customization options for various applications.

• Scalability: Can be easily integrated into existing EtherNet/IP networks, allowing for system expansion as needed.

• Reliability: Built with high-quality components and designed to operate in demanding industrial environments.

• Efficiency: Provides fast and reliable communication between I/O devices and the control system.

Considerations and Precautions

• Compatibility: Ensure compatibility with other components in your system, including controllers and I/O modules.

• Network Configuration: Proper network configuration is essential for optimal performance. Refer to the user manual for detailed instructions.

• Environmental Conditions: Adhere to the specified operating temperature and humidity ranges to prevent damage to the module.

• Power Supply: Use a suitable power supply that meets the module's voltage and current requirements.

Applications

The 1794-AENT is commonly used in various industrial automation applications, including:

• Machine Automation: Controlling and monitoring various machine components and processes.

• Process Automation: Monitoring and controlling industrial processes, such as temperature, pressure, and flow rate.

• Building Automation: Controlling HVAC systems, lighting, and other building systems.

• Data Acquisition: Collecting data from sensors and instruments for analysis and monitoring.
