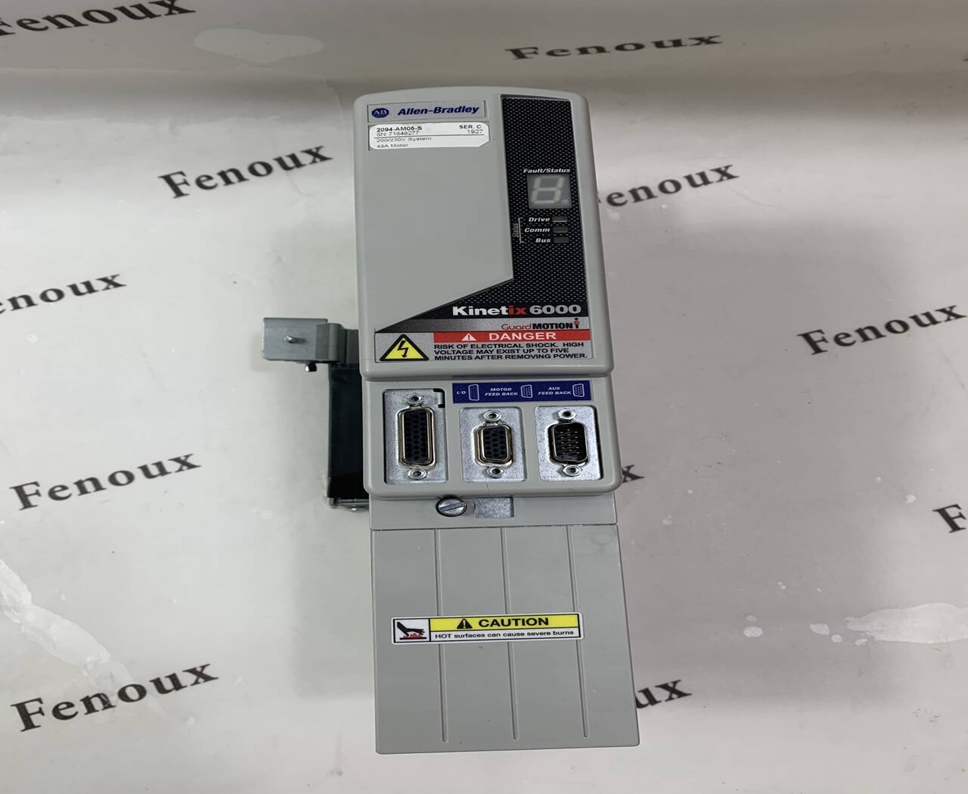

AB 2094-AM05-S

Kinetix 6500 EtherNet/IP control modules (catalog numbers 2094-EN02D-M01-Sx) are not compatible with

IAM/AM modules on the same Bulletin 2094 power rail where sercos interface is used.

Description:

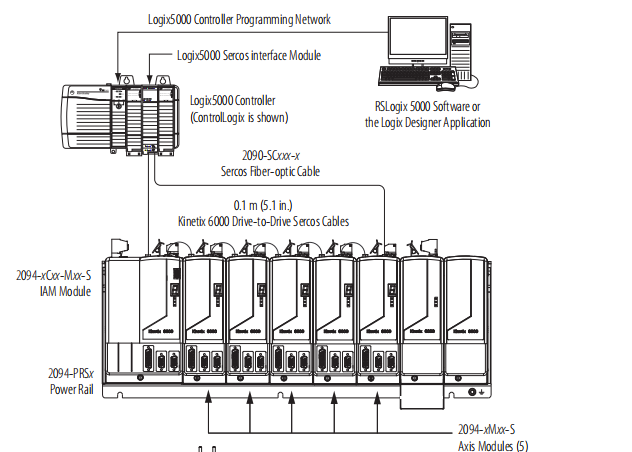

Kinetix 6000 servo drive systems consist of these required components:

• One integrated axis module (IAM or leader IAM)

• Up to seven axis modules

• One power rail

• One to eight rotary motors, linear motors, or linear actuators

• One to eight motor power and feedback cables

• Low-profile connector kits (required for flying-lead feedback cables)

• Two to nine sercos fiber-optic cables

Kinetix 6000 systems can also include one or more integrated axis modules used as a follower IAM (and associated axis

modules, power rails, motors, cables, and connectors as required for the application).

Kinetix 6000M integrated drive-motor (IDM) systems are an option with Kinetix 6000 servo drives

• One Kinetix 6000M IDM power interface module (IPIM) per IDM system

• As many as 4 IPIM modules on the Bulletin 2094 power rail

• As many as 16 integrated drive-motor (IDM) units connect to each IPIM module

These components are optional:

• One shunt module, 2094-BSP2 with optional Bulletin 1394 external passive-shunt resistor

• 2094-PRF, Slot-filler modules

• Bulletin 2094 Line Interface Module (LIM)

• Bulletin 2090 Resistive Brake Module (RBM)

• Bulletin 1336 external active shunt module (dynamic brake)

• 2090-XXLF AC Line Filters (required for CE)
