The information below summarizes the changes to this manual since
the last publication.
To help you find new and updated information in this release of the
manual, we have included change bars as shown to the right of this
paragraph.
Description:

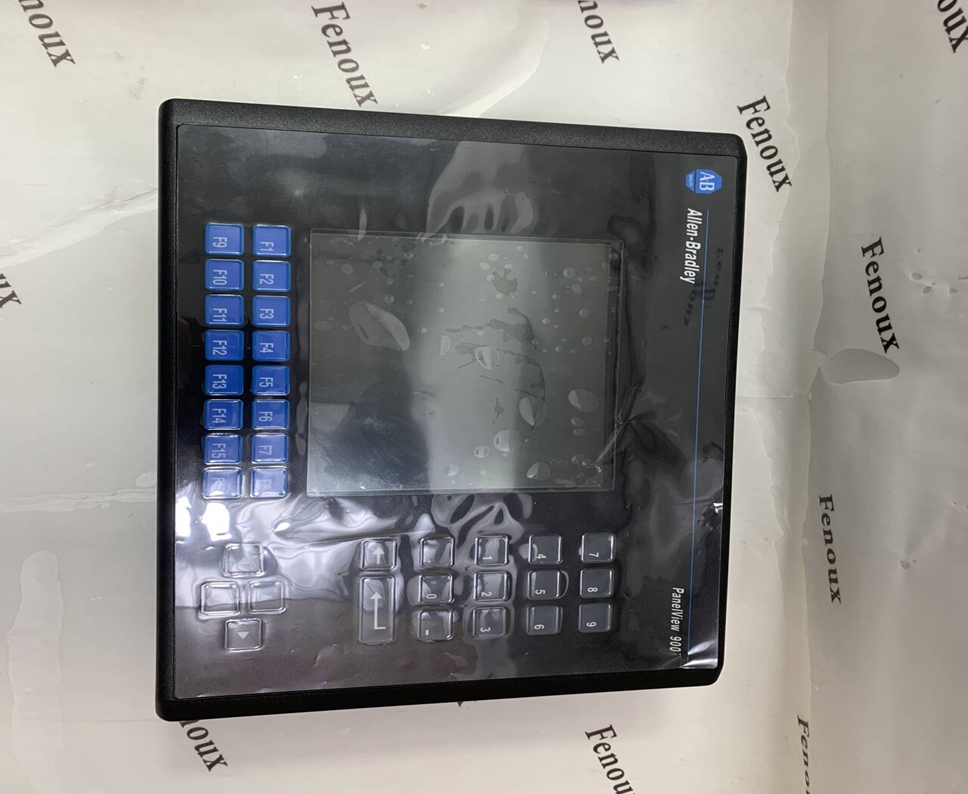

PanelView terminals equipped with an RS-232 printer port can print:
• triggered messages in a message display.
• triggered states of a multistate indicator.
• alarm messages.
• alarm lists.
Print attributes for objects are defined in the application.
Any printer that supports the IBM enhanced character set can be
connected to the RS-232 printer port of a PanelView terminal.
Alarm List PanelView terminals support an Alarm List queue to store information
on triggered alarms. The Alarm List stores a maximum of 100 alarms
or as many as the terminal can hold in nonvolatile RAM. The number
of alarms stored in the list is configured by using the PanelBuilder32
software.
The Alarm List stores the following data for each alarm:
• Acknowledge indicator
• Alarm date and time
• Acknowledge date and time
• Alarm trigger value
• Alarm text including variables
The Alarm List is cleared:
• when an application is downloaded to the terminal.
• when the terminal is reset or power is cycled.
The Alarm List object may appear on the Alarm Banner or other
application screens. The data that displays in the Alarm List is
configured using the PanelBuilder32 software.
