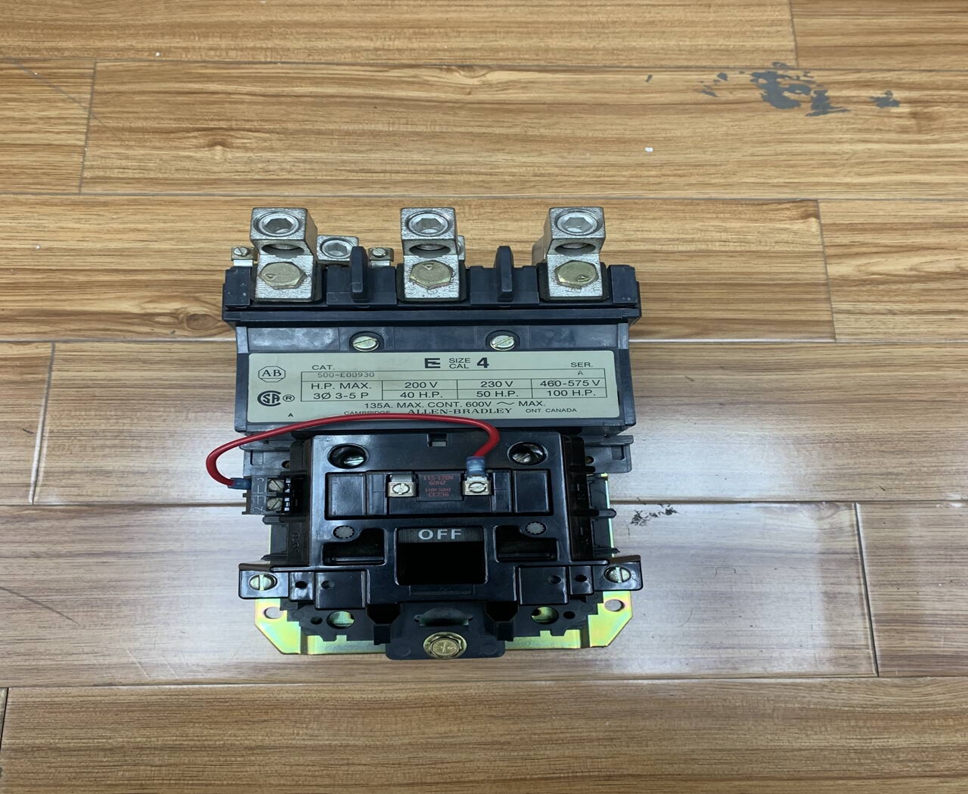

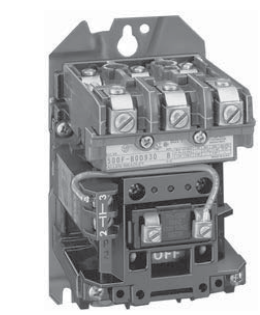

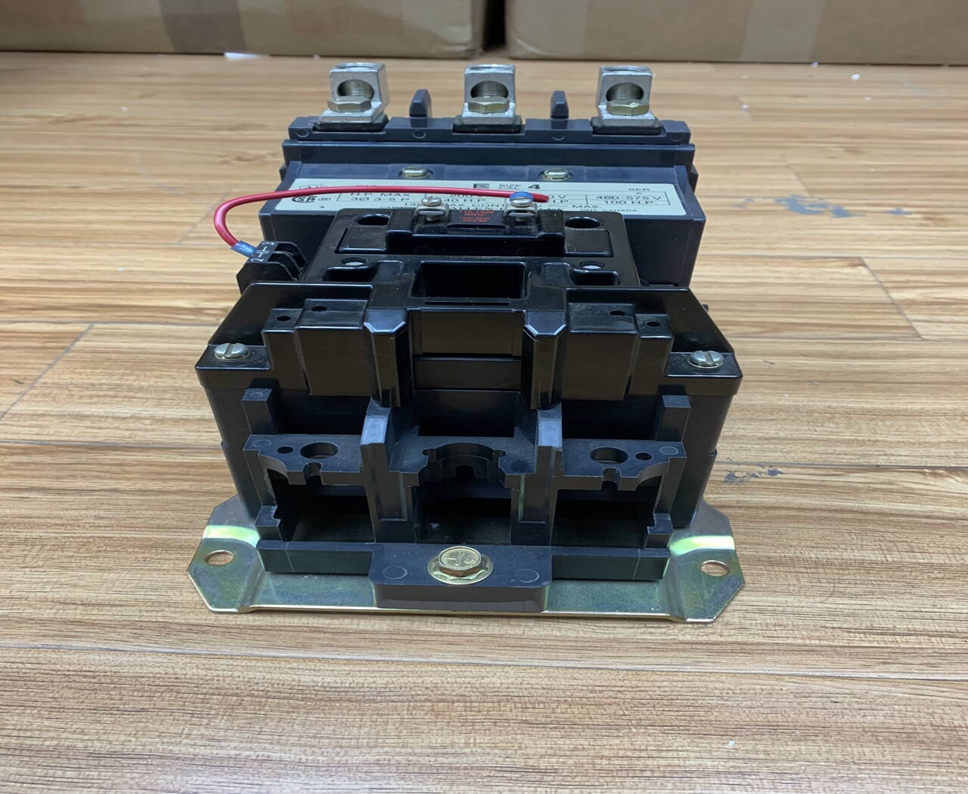

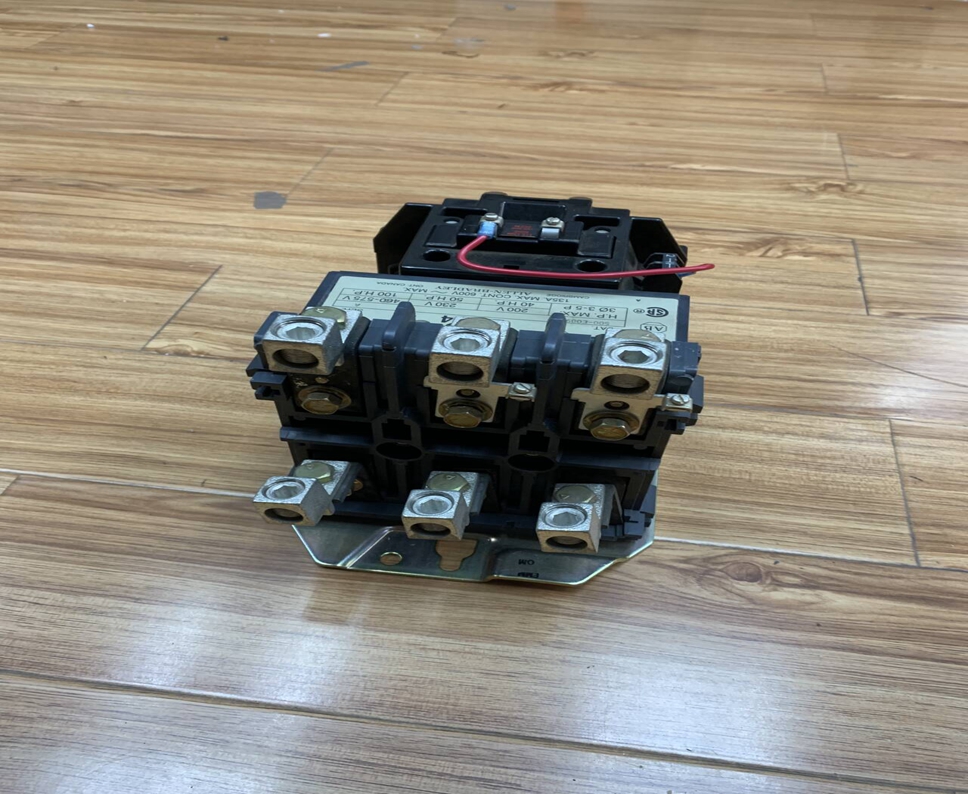

Feed-through construction
Contactor can be field wired for single- or three-phase applications
NEMA sizes 0…4 (open type)
Available as components or a modular kit for faster delivery
Product selection can be done via two options:
− Ordering a complete kit
− Ordering individual components
Feed-through contactor includes a 120V AC coil and (1) N.O. auxiliary
contact, as standard
NEMA size 5 (open type)
Available as factory assembled
Description:
✶ Service-Limit Current Ratings — The service-limit current ratings shown represent the maximum rms current, in amperes, which the controller shall be
permitted to carry for protracted periods in normal service. At service-limit current ratings, temperature rises shall be permitted to exceed those obtained by
testing the controller at its continuous current rating. The current rating of overload relays or the trip current of other motor protective devices used shall not
exceed the service-limit current rating of the controller.
Plugging or Jogging Service — The listed horsepower ratings are recommended for those applications requiring repeated interruption of stalled motor current
encountered in rapid motor reversal in excess of five openings or closings per minute and shall not be more than ten in a ten minute period.
‡ If maximum available current (at capacitor terminals) is greater than 3000 A, please contact your local Rockwell Automation sales office, Allen-Bradley
distributor, or NEMA ICS-2 Standard.
