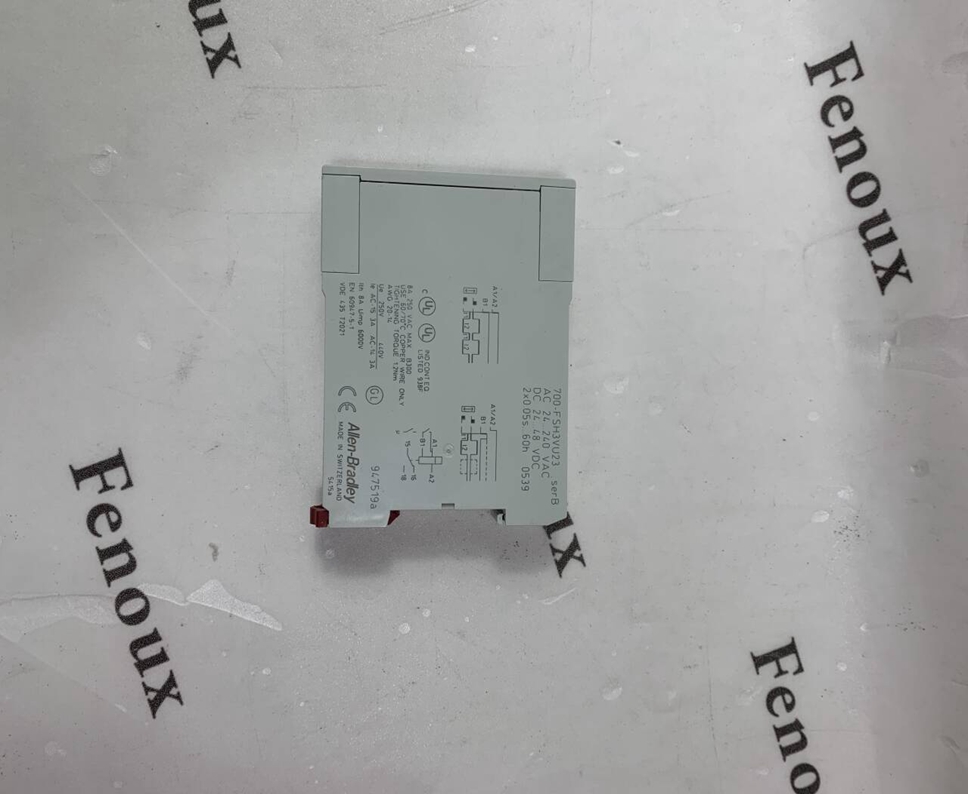

AB 700-FSH3VU23

 Adjustable function and timing range timing relays

 DIN Rail mounted without cost of socket

 22.5 mm wide multi-function or single functions

 Available as SPDT or DPDT contact output, 8 A

 Timing Ranges From 0.05 s…60 hr

 Coil surge protection

 Hazardeous location version available

Description:

Setting Accuracy ±5% of full scale

Repeatability ±0.2% of the setting values

Tolerance Voltage: ±0.001%/%ΔU

Temperature: ±0.025%/°C

Supply

Supply Voltages 24…48V DC and 24…240V AC,

50/60 Hz (multi voltage)

Voltage Tolerance –20…+20% (DC), –15…+10% (AC)

Power Consumption 0.5 W at 24V DC, 5 VA at 240V AC

Time Energized 100%

Reset Time 50 ms

Voltage Interruption ≤20 ms without reset (supply voltage)

Input Impedance Relay ON: 3K-13K ohms

Relay OFF: 0.7K-4K ohms

Cable Length (Supply Voltage

Control) Max. 250 m (800 ft)

Pulse Control (B1)

Pulse Duration ≥50 ms (AC), ≥30 ms (DC)

Input Voltage Supply voltage range

Input Current 1 mA

Max. Leakage Current 400 micro Amps

Cable Length

Max. 250 m (800 ft) without parallel

load between B1 and A2

Max. 50 m (160 ft) with load (<3 kΩ)

between B1 and A2

Outputs

Contact Type Relay as changeover switch

Dielectric Coil to Contact

Withstand Voltage 5000 V

Switching Capacity

Voltage: 440V AC

Current Ith (AC-1): 8 A (5 A for 700-

FSQ)

Power: 2000 VA

According to IEC 947-5-1:

3 A/440V AC (inductive load, AC 14)

3 A/250V AC (inductive load, AC 15)

1 A/24V DC (inductive load, DC 13)

According to UL 508:

1.5 A/250V AC (B300)

3 A/120V AC (B300)

Short-Circuit Resistance 10 A gL
