AB 800T-XAP

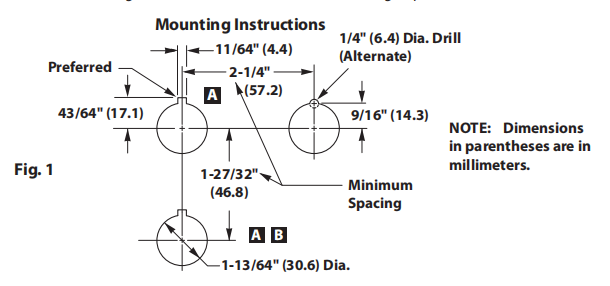

1. Remove the following parts from the unit:

 Lens or cap, mounting ring, thrust washer and legend plate or trim washer.

2. Determine the correct number of gaskets to be used per the table in Fig. 1.

3. Place the unit into the mounting hole from the rear of the panel.

4. Position legend plate or trim washer and then thrust washer, with thrust washer tang engaging legend plate or trim washer and panel notches.

5. Install mounting ring and tighten against thrust washer to 25 - 30 lb-in (2.8 - 3.4 Nm).

6. Install lens or cap to operator.

Description:

To determine the contact targets of Allen-Bradley 800T and 800H Momentary Push Buttons, 2 and 3 position Push-Pull Push Buttons, and 2 position Twist-release Push Buttons, proceed as follows.

1. Identify the CONTACT BLOCK used by looking at the contact block cover plate and finding a Catalog No. such as 800T-XA.

2. Identify the CIRCUIT for which the contact target is desired by looking again at the contact block cover plate for a wiring symbol such as “A”, “B”, “A1”, etc.

3. Refer to Fig 5 and find the contact block and wiring symbol.

Read across the top to find the Lens or Cap position. (IN, CENTER, or OUT)

The contact target is at the intersection of the contact block row and position column.

The contact blocks listed below may be mounted in various combinations on an operator. See operator instruction sheet for any additional contact block limitations.

Two Tiers High Maximum (for mounting instructions see contact block instruction sheet)

Illuminated Push Button Operators Accept One (1) or Two (2) Contact blocks

Non-Illuminated Push Button Operators Accept One (1) to Four (4) Contact blocks
