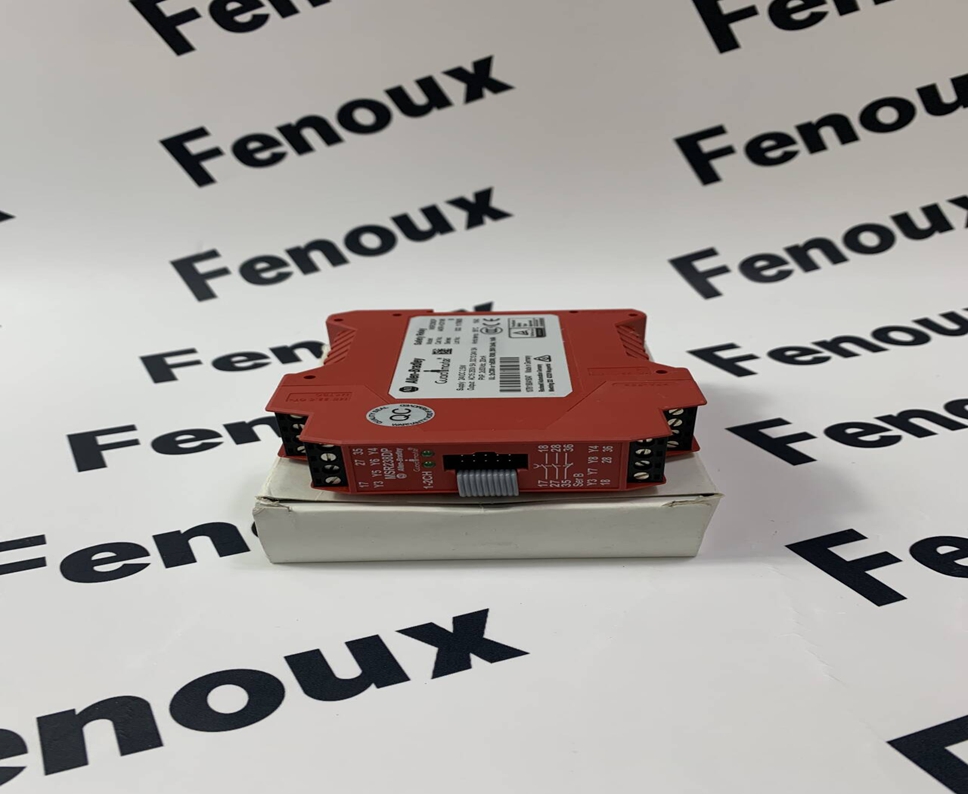

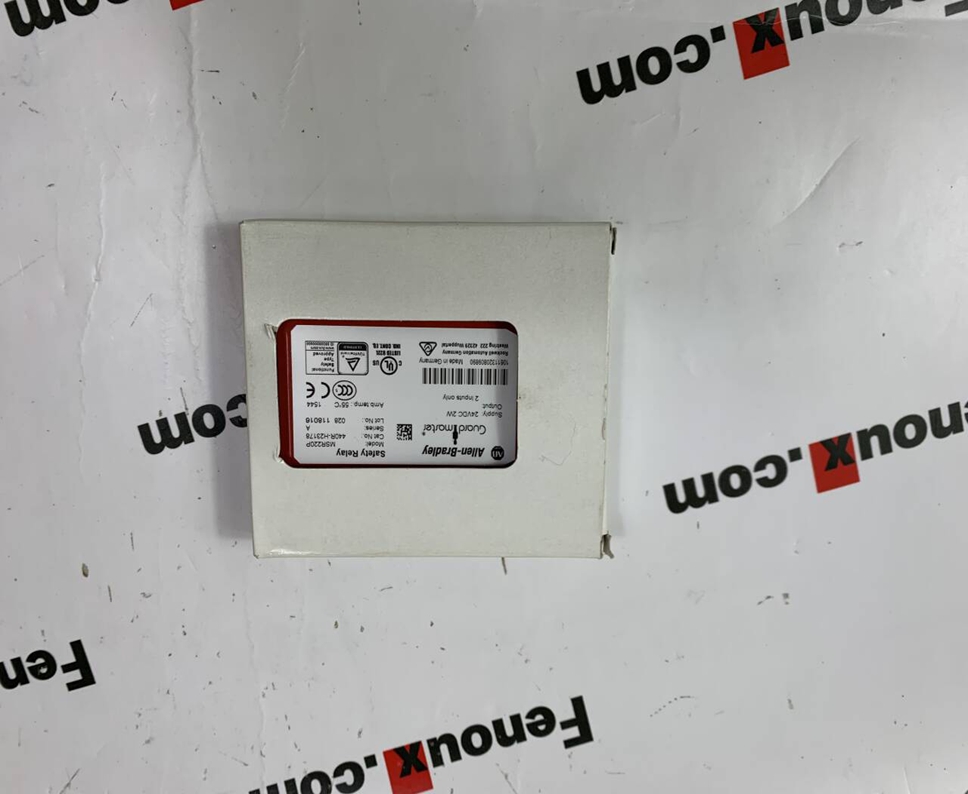

AB MSR220P

Product Overview

The Allen-Bradley MSR220P is a modular monitoring safety relay designed to enhance safety in industrial automation systems. It provides reliable and efficient safety functions, helping to protect personnel and equipment from hazards.

Key Features and Benefits

• Modular Design: The modular design allows for flexibility and customization to meet specific safety requirements.



• Dual Channel: The relay features dual channels for increased redundancy and safety.

• Safety Functions: It offers a variety of safety functions, including emergency stop, safety gate monitoring, and safety mat monitoring.

• Easy Configuration: The MSR220P is easy to configure and install, reducing downtime and increasing productivity.

• Diagnostics: Built-in diagnostics help to identify and troubleshoot potential issues.

• Compliance: The relay meets relevant safety standards, ensuring compliance with industry regulations.

Technical Specifications

• Part Number: MSR220P

• Voltage: 24 VDC

• Inputs: Two independent inputs, configurable as normally closed or safety mat

• Outputs: Multiple outputs for various safety functions

• Mounting: DIN rail or panel mount

• Dimensions: Refer to the datasheet for specific dimensions

Applications

The MSR220P is ideal for a wide range of applications, including:

• Machine guarding: Monitoring safety gates, light curtains, and other safety devices.

• Emergency stop: Providing a reliable emergency stop function.

• Safety mat monitoring: Protecting personnel from hazards in hazardous areas.

• Robot safety: Integrating into robotic systems to ensure safe operation.

Precautions

• Qualified Personnel: Installation and configuration should be performed by qualified personnel.

• Compliance: Ensure compliance with all applicable safety standards and regulations.

• Maintenance: Regular inspection and maintenance are essential for optimal performance.

• Refer to Datasheet: Always refer to the official datasheet for detailed specifications and instructions.

Additional Information

• Discontinued Product: Please note that the MSR220P has been discontinued by Rockwell Automation as of December 31, 2017.



• Alternatives: Consider alternative safety relays from Rockwell Automation or other manufacturers that meet your specific requirements.
