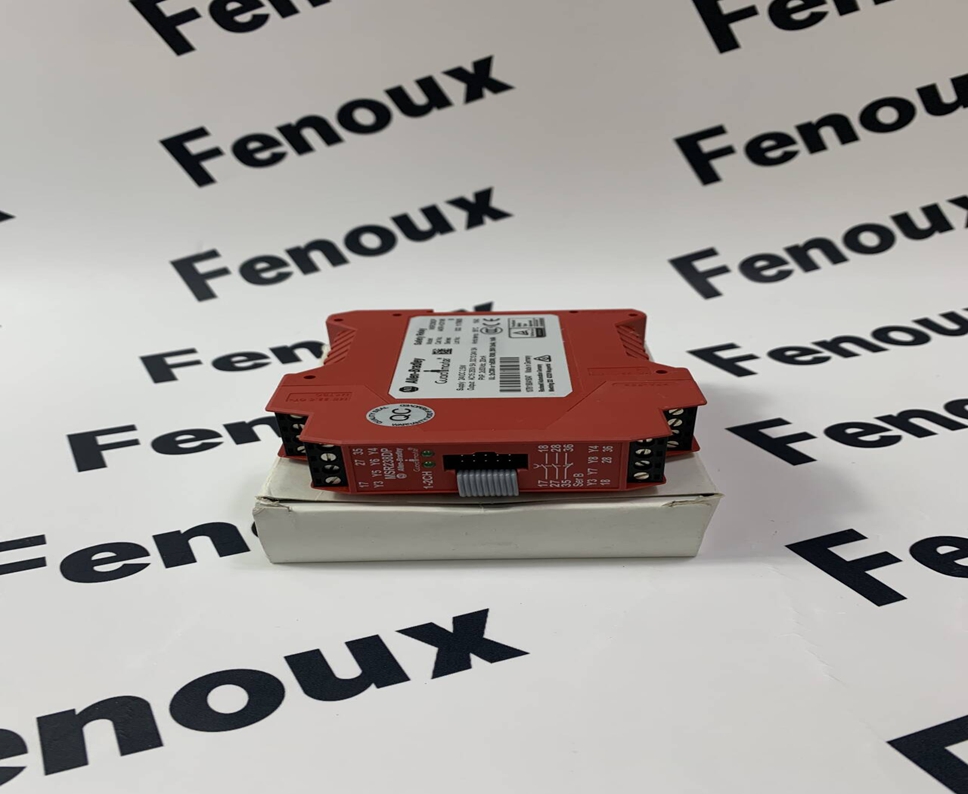

AB MSR238DP

Product Description

The Allen-Bradley MSR238DP is a modular safety relay designed to enhance the safety and reliability of industrial automation systems. As part of Rockwell Automation's GuardMaster safety relay series, the

 MSR238DP offers a robust solution for various safety applications, providing reliable monitoring and control of safety functions.

Key Features and Specifications

• Modular Design: This relay is designed to be easily integrated into existing control systems, allowing for flexible configuration based on specific application requirements.

• Safety Outputs: The MSR238DP provides both normally open and normally closed delayed safety outputs, ensuring a high level of safety and redundancy.

• Auxiliary Outputs: An additional normally closed delayed auxiliary output is available for various control functions.

• Supply Voltage: The relay operates on a 24VDC supply voltage.

• Removable Terminals: The removable terminals facilitate easy wiring and maintenance.

• Certifications: The MSR238DP complies with various safety standards, including UL and CE, ensuring its suitability for a wide range of applications.

Product Advantages

• Enhanced Safety: The MSR238DP contributes to a safer working environment by providing reliable monitoring and control of safety functions.

• Flexibility: Its modular design allows for customization to meet specific application needs.

• Reliability: Constructed with high-quality components, the MSR238DP offers long-term durability and performance.

• Ease of Use: The removable terminals and clear documentation simplify installation and maintenance.

• Compatibility: The relay integrates seamlessly with other Allen-Bradley components, making it a convenient choice for Rockwell Automation users.

Precautions and Considerations

• Proper Installation: Adhere to the manufacturer's guidelines for correct installation and wiring to ensure optimal performance and safety.

• Environmental Conditions: Consider the operating environment, including temperature, humidity, and vibration, to select the appropriate installation location.

• Regular Maintenance: Perform routine inspections and maintenance to prolong the life of the relay and maintain safety.

• Compatibility: Verify compatibility with other components in your system before installation.

Applications

The MSR238DP finds applications in various industries, including:

• Manufacturing: Machine guarding, emergency stop circuits, and safety interlocks.

• Packaging: Conveyor safety, machine guarding, and product protection.

• Material Handling: Crane safety, overhead door safety, and load sensing.

• Automotive: Assembly line safety, robotic safety, and press brake safety.

In summary, the Allen-Bradley MSR238DP is a versatile and reliable safety relay that offers a robust solution for a wide range of industrial applications. Its modular design, safety features, and ease of use make it

 a valuable asset for enhancing safety and productivity in automated systems.

Note: For more detailed information, please refer to the official product documentation provided by Rockwell Automation.
