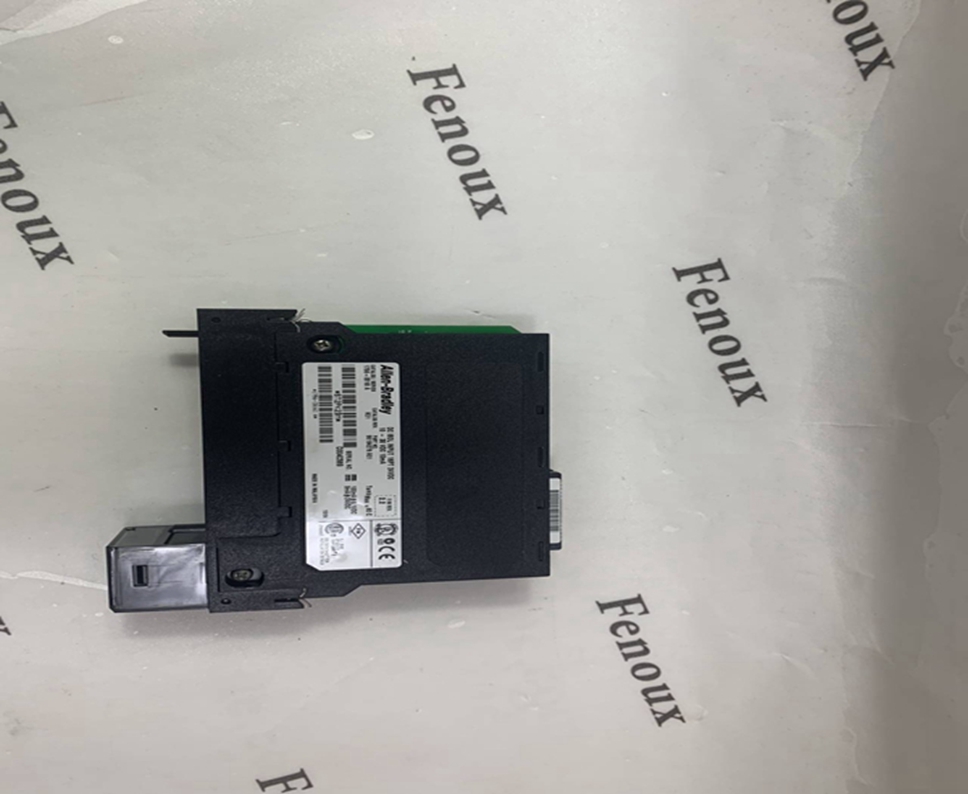

Allen-Bradley 1771-ALX

ATTENTION: Read this document and the documents listed in the Additional Resources section about installation, configuration, and operation of this

equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring

instructions in addition to requirements of all applicable codes, laws, and standards.

Installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained

personnel in accordance with applicable code of practice. In case of malfunction or damage, no attempts at repair should be made. The module

should be returned to the manufacturer for repair. Do not dismantle the module.

Description:

ATTENTION:

• This product is grounded through the DIN rail to chassis ground. Use zinc-plated chromate-passivated steel DIN rail to assure proper grounding. The

use of other DIN rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are poor conductors, can result in improper or

intermittent grounding. Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately. Be sure to

ground the DIN rail properly. See Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1, for more information.

• Do not remove or replace an Adapter Module while power is applied. Interruption of the backplane can result in unintentional operation or

machine motion.

• Do not remove or replace a terminal base while power is applied. Interruption of the backplane cab result in unintentional operation or

machine motion.

• If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

WARNING: If you connect or disconnect wiring while the field-side power is on, an electrical arc can occur. This could cause an explosion in hazardous

location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

WARNING:

• When you insert or remove the module while backplane power is on, an electric arc can occur. This could cause an explosion in hazardous

location installations.

Be sure that power is removed or the area is nonhazardous before proceeding. Repeated electric arcing causes excessive wear to contacts on both

the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation.

• If you insert or remove the module while backplane power is on, an electric arc can occur. This could cause an explosion in hazardous location

installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

Electrical Safety Considerations

ATTENTION:

• This equipment is certified for use only within the surrounding air temperature range of -20…+55 °C (-4…+131 °F). The equipment must not be used

outside of this range.

• Use only a soft dry anti-static cloth to wipe down equipment. Do not use any cleaning agents.
