This procedure assumes you have prepared your panel, mounted your Bulletin
2094 power rail, and understand how to bond your system. For installation
instructions regarding equipment and accessories not included here, refer to the
instructions that came with those products.
Description:
Plan the installation of your system so that you can perform all cutting, drilling, tapping, and welding with the system removed from the enclosure. Because
the system is of the open type construction, be careful to keep any metal debris from falling into it. Metal debris or other foreign matter can become lodged in the circuitry, which can result in damage to components.
Connector pins on the Bulletin 2094 power rail are covered with a protective
boot. To avoid damage to the power rail during installation, do not remove the protective boot until you are ready to mount your slot-filler module.
To avoid damage to the pins located on the back of the shunt module
and to make sure that module pins mate properly with the power rail,

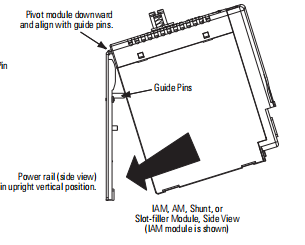

hang modules as shown in steps 3…6.
The power rail must be mounted vertically on the panel before hanging
modules on the power rail. Do not mount modules if the power rail is
horizontal.
