MSR241P Allen Bradley Guardmaster Safety Relay

INQUIRE NOW

Products Name: MSR241P Allen Bradley Guardmaster Safety Relay

PRODUCT DESCRIPTION

Brand:Allen Bradley

Model number: MSR241P

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.21kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

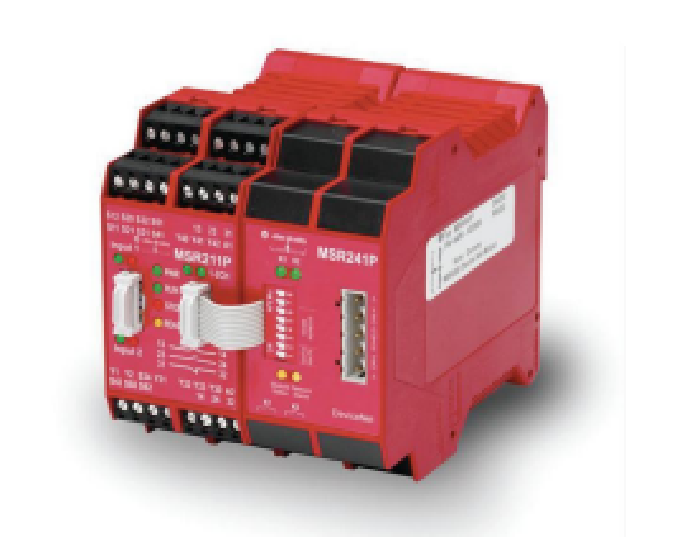

The MSR241P is a DeviceNet™ communications module for the modular Minotaur MSR200 family of

monitoring safety relays. It can be connected to either the MSR210P, MSR211P, or MSR230P modules to

provide diagnostic and I/O status information to remote locations.

The MSR241P is connected via the flat ribbon cable to the base module or the last connected expansion

module, depending on the system configuration. Data transfer and power supply are routed through the

same bus cable and connectors.

The MSR241P has two nonsafety rated relay outputs that are activated with the last two bits of the one

input byte.

The baud rate and address is set by means of the dipswitch on the front panel.

The connected supervisory monitoring or data acquisition system can process and store the data, display

it, and record the reason causing a shutdown, along with the time and date of each such occurrence. This

makes fault diagnosis much easier.

Features

DeviceNet™ data transmission

Switch selectable baud rates: 125 K, 250 K, 500 K

Switch selectable address

45 mm DIN Rail housing

Four diagnostic LEDs

Removable terminals

Group two only slave
