1) Continuous power on the 24 VDC output
2) Valid under the following conditions: 750 VDC DC bus voltage, 55°C ambient temperature, installation elevation <500 m above sea level, no derating due
to cooling type.
3) The output voltage is limited to max. 60 VDC in the event of error.
4) When switching off, there is no active discharge of the output and the loads connected to it.
5) Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous power into
account. Requirements that go beyond this must be arranged with B&R.
6) These dimensions refer to the actual device dimensions including the respective mounting plate. Make sure to leave additional space above and below the
devices for mounting, connections and air circulation.
Description:
Certifications
CE Yes
KC Yes
UL cULus E225616
Power conversion equipment
DC bus connection
Voltage
Nominal 750 VDC
Operating range in continuous operation 260 to 800 VDC
Full continuous power 315 to 800 VDC
Continuous power consumption Max. 445 W
Power dissipation with continuous power 1) 22 W (0% continuous power)
27 W (50% continuous power)
45 W (100% continuous power)
DC bus capacitance 220 nF

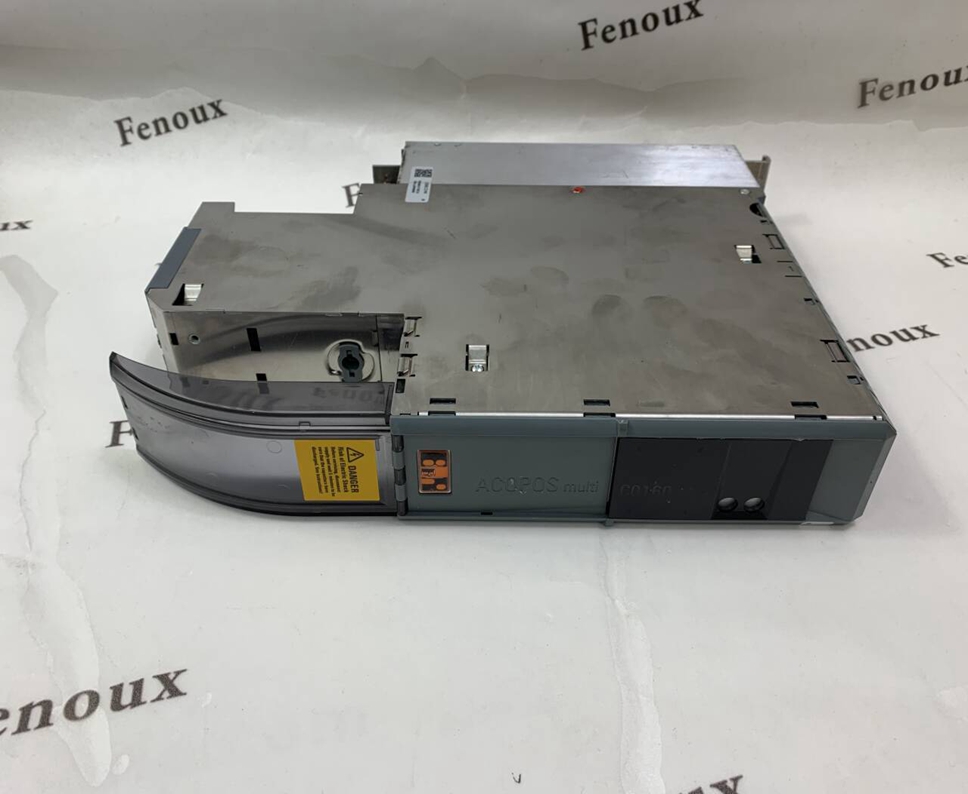

Design ACOPOSmulti backplane
24 VDC output
Continuous power 2) 400 W
Output voltage
DC bus voltage (UDC): 260 to 315 VDC 25 VDC * (UDC / 315)
DC bus voltage (UDC): 315 to 800 VDC 24 VDC ±6%
Continuous current 16 ADC
Reduction of continuous power at ambient temperatures starting at 40°C
No reduction
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level 40 W per 1000 m
