In addition to the registers listed in the register description, the module also has other more general data points.
These registers are not specific to the module but contain general information such as serial number and hardware
version.
General data points are described in section "Additional information - General data points" of the X20 system user's
manual.
Description:
1 General information

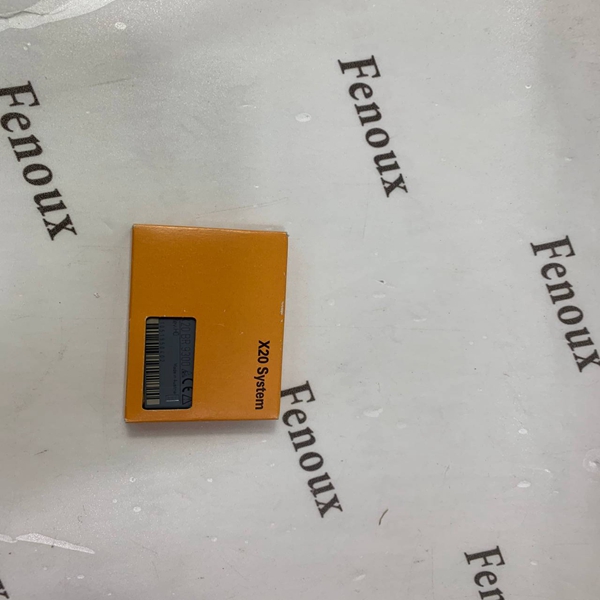

The module is equipped with 2 current outputs with 16-bit digital converter resolution. The 2 channels are electrically
isolated from each other. The user can select between the 3 output ranges 4 to 20 mA, 0 to 20 mA and 0 to 24 mA.
• 2 analog current outputs
• Electrically isolated analog channels
• 16-bit digital converter resolution
2 Coated modules
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation and corrosive gases.
The modules' electronics are fully compatible with the corresponding X20 modules.
For simplification purposes, only images and module IDs of uncoated modules are used in this data
sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, method 4, exposure 21 days
