B&R X20AO2622

Brand:B&R

Model number:X20AO2622

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.40kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

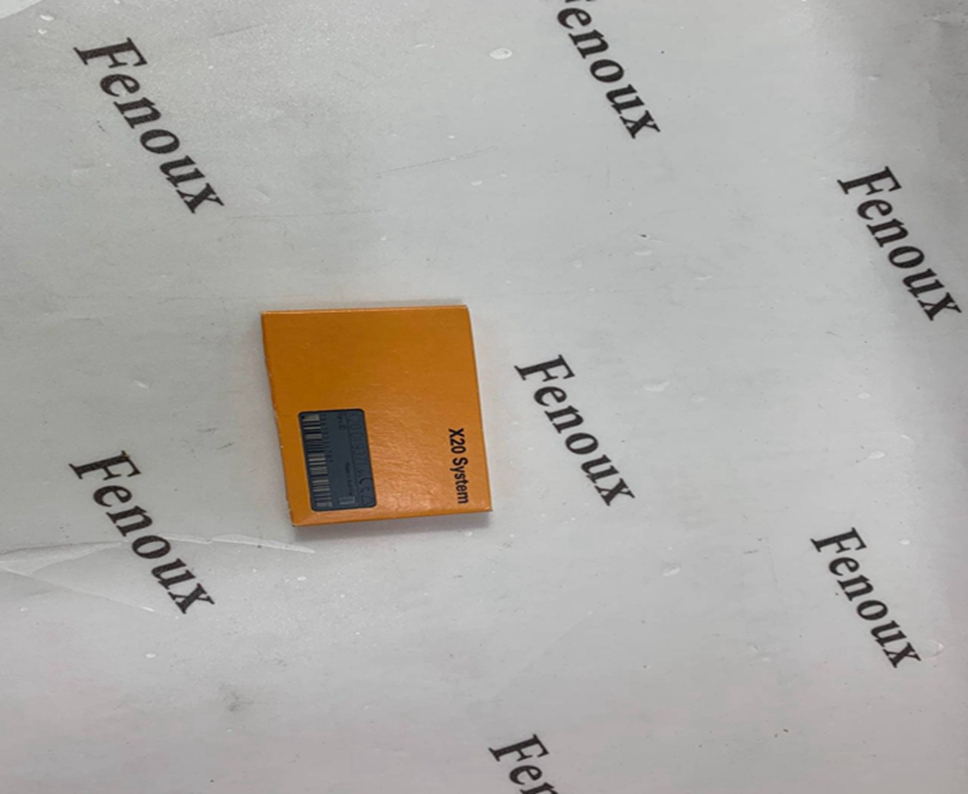

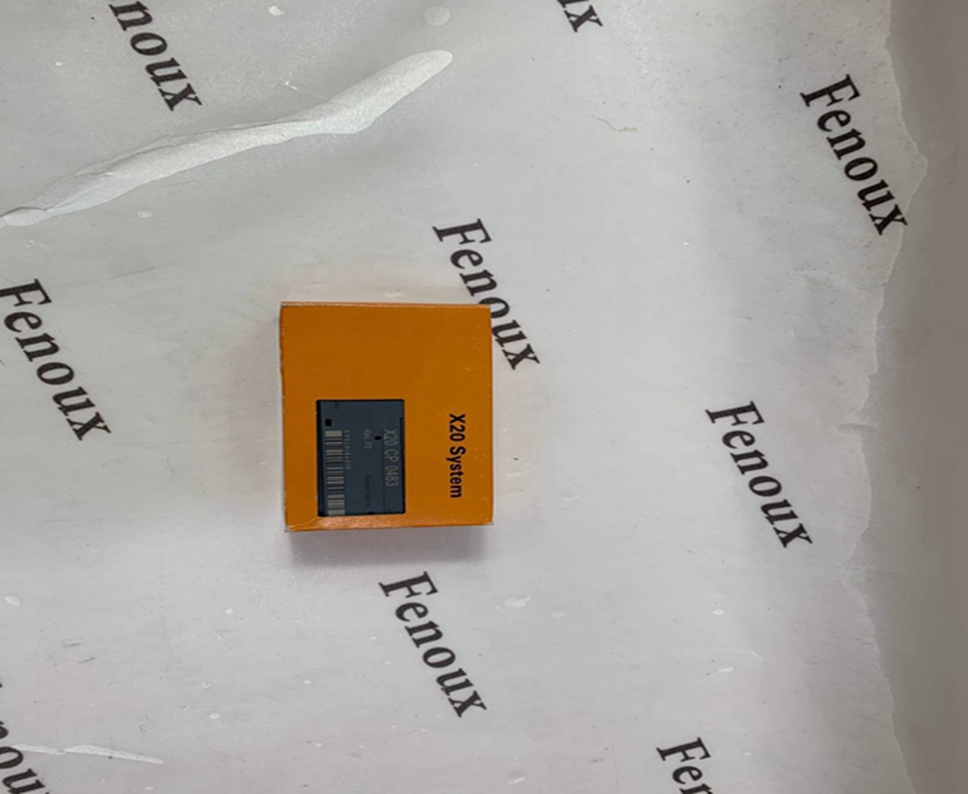

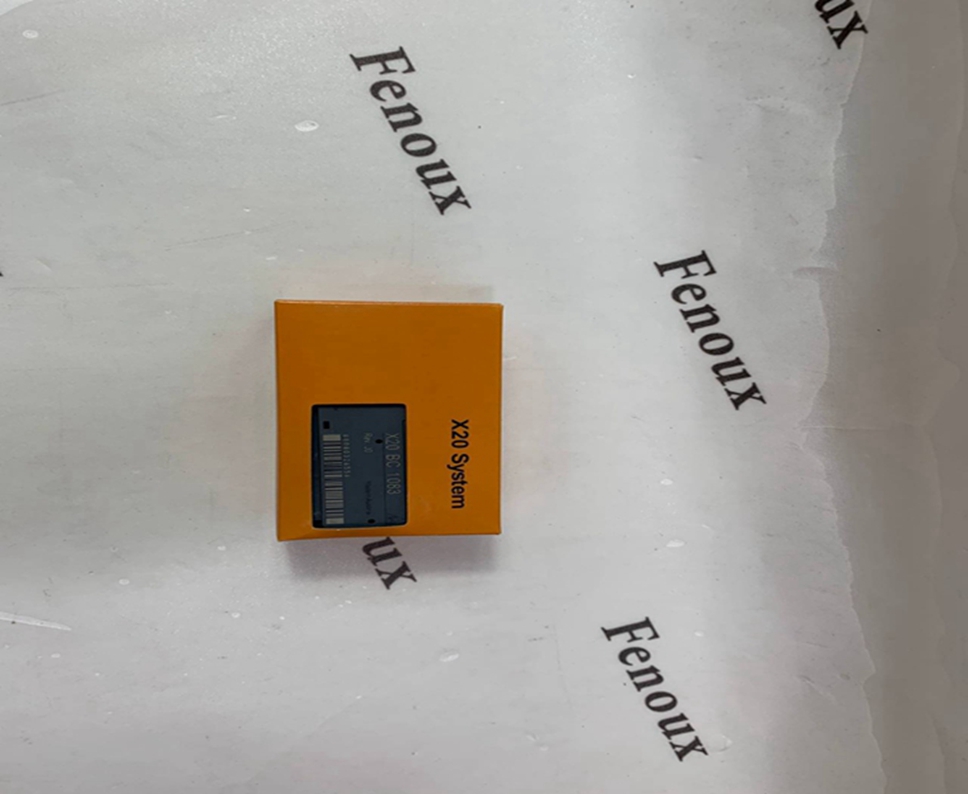

B&R X20AO2622 I/O module


INQUIRE NOW

Products Name: B&R X20AO2622

PRODUCT DESCRIPTION

For simplification purposes, only images and module IDs of uncoated modules are used in this data

sheet.

The coating has been certified according to the following standards:

• Condensation: BMW GS 95011-4, 2x 1 cycle

• Corrosive gas: EN 60068-2-60, Method 4, Exposure 21 days

Description:

Product ID X20DI9371 X20cDI9371

Short description

I/O module 12 digital inputs 24 VDC for 1-wire connections

General information

B&R ID code 0x1B95 0xD574

Status indicators I/O function per channel, operating state, module status

Diagnostics

Module run/error Yes, using status LED and software

Power consumption

Bus 0.18 W

Internal I/O -

External I/O 1.75 W

Additional power dissipation caused by the actuators (resistive) [W]

-

Electrical isolation

Channel - Bus Yes

Channel - Channel No

Certification

CE Yes

cULus Yes

cCSAus HazLoc Class 1 Division 2 Yes -

ATEX Zone 2 1) Yes

KC Yes -

GL Yes

GOST-R Yes

Digital inputs

Nominal voltage 24 VDC

Input voltage 24 VDC -15% / +20%

Input current at 24 VDC Typ. 3.75 mA

Input filter

Hardware ≤100 μs

Software Default 1 ms, configurable between 0 and 25 ms in 0.2 ms intervals

Connection type 1-wire connections

Input circuit Sink

Input resistance Typ. 6.4 kΩ

Switching threshold

Low <5 VDC

High >15 VDC

Isolation voltage between channel and bus 500 Veff

Operating conditions

Mounting orientation

Horizontal Yes

Vertical Yes

Installation at elevations above sea level

0 to 2000 m No limitations

>2000 m Reduction of ambient temperature by 0.5°C per 100 m

EN 60529 protection IP20

Environmental conditions

Temperature

Operation

Horizontal installation -25 to 60°C

Vertical installation -25 to 50°C

Derating See section "Derating"

Storage -40 to 85°C

Transport -40 to 85°C

Relative humidity

Operation 5 to 95%, non-condensing Up to 100%, condensing

Storage 5 to 95%, non-condensing

Transport 5 to 95%, non-condensing

Mechanical characteristics

Note Order 1x X20TB12 terminal block separately

Order 1x X20BM11 bus module separately

Order 1x X20TB12 terminal block separately

Order 1x X20cBM11 bus module separately

Spacing 12.5 +0.2 mm
