The node numbers of all POWERLINK bus controllers can be assigned dynamically. This has the following advantages:
• No need to set the node number switch
• Easier installation
• Reduced error sources
For information about configuration as well as an example, see the AS help system (Communication → POWERLINK → General information → Dynamic node allocation (DNA)).
Description:

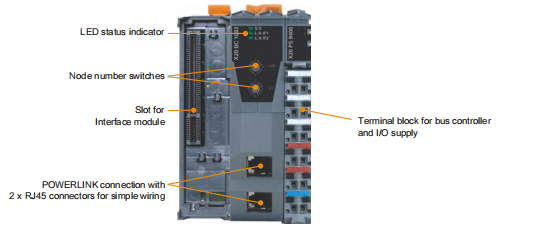

The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate
the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.
POWERLINK is a standard protocol for Fast Ethernet with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed.
www.ethernet-powerlink.org
The bus modules expanded to the left allow connection of up to 2 interface modules in addition to the bus controller.
• POWERLINK
• I/O configuration and firmware update via the fieldbus
• Integrated hub for efficient cabling
• Up to 2 slots for interface modules
2 Coated modules
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation and corrosive gases.
The modules' electronics are fully compatible with the corresponding X20 modules.
For simplification purposes, only images and module IDs of uncoated modules are used in this data
sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, Method 4, exposure 21 days
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
