B&R X20HB8815

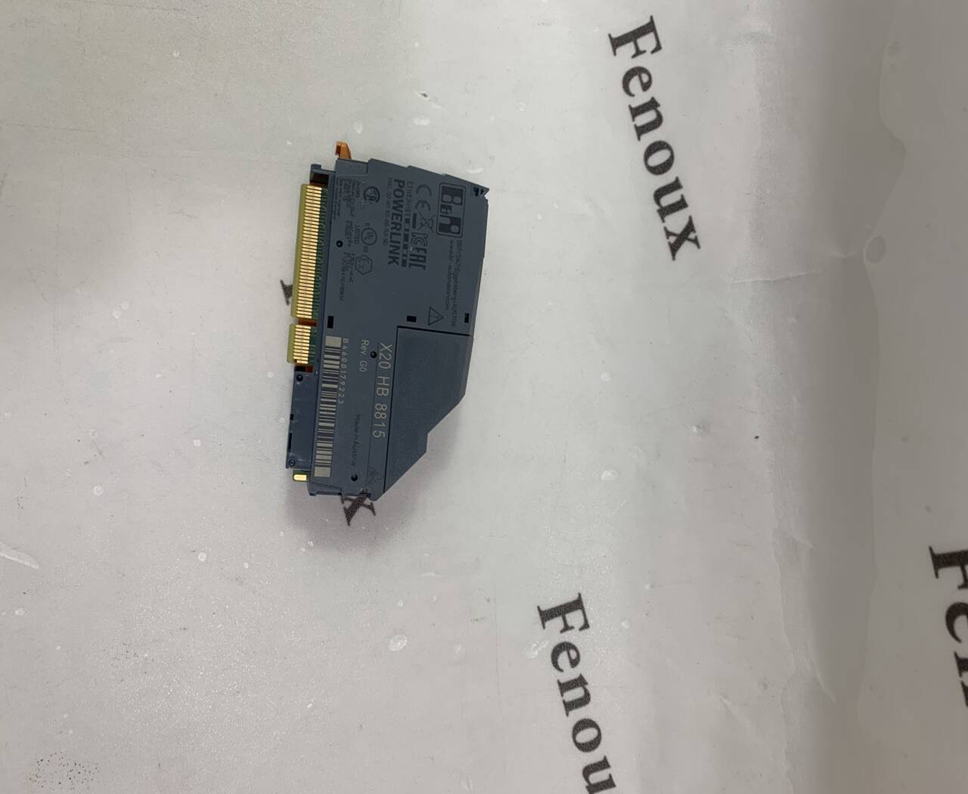

B&R X20HB8815 plc modular
Brand：B&R
Model number:X20HB8815
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.40kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
B&R X20HB8815 plc modular
Max. 400 m between 2 stations (segment
length)
POWERLINK - Max. 2 km between 2 stations (segment
length)
Max. 2 km between 2 stations (segment
length)
hardware revision of X20BC8084 must be ≥D0.3) The hardware revision of X20BC8083 and X20HB8880 must be ≥F0.
Description:
POWERLINK compact link selector Connects POWERLINK devices to a redundant POWERLINK network
General information
Power consumption 2 W
Certification
CE Yes
cULus Yes
cCSAus HazLoc Class 1 Division 2 Yes
ATEX Zone 2 1) Yes
KC Yes
GL Yes
LR Yes
GOST-R Yes
Interfaces
Type POWERLINK compact link selector
Design 2x shielded RJ45
Cable length Max. 100 m between 2 stations (segment length)
Transfer rate 100 Mbit/s
Transmission
Physical layer 100BASE-TX
Half-duplex Yes
Full-duplex No
Autonegotiation Yes
Auto-MDI / MDIX Yes
Environmental conditions
Temperature
Operation
Horizontal installation -25 to 60°C
Vertical installation -25 to 50°C
Mechanical characteristics
Note Order 1x X20TB12 terminal block separately
Order 1x X20PS8002 power supply module separately
Order 1x X20HB2880 or 2x X20HB2885 hub expansion module separately

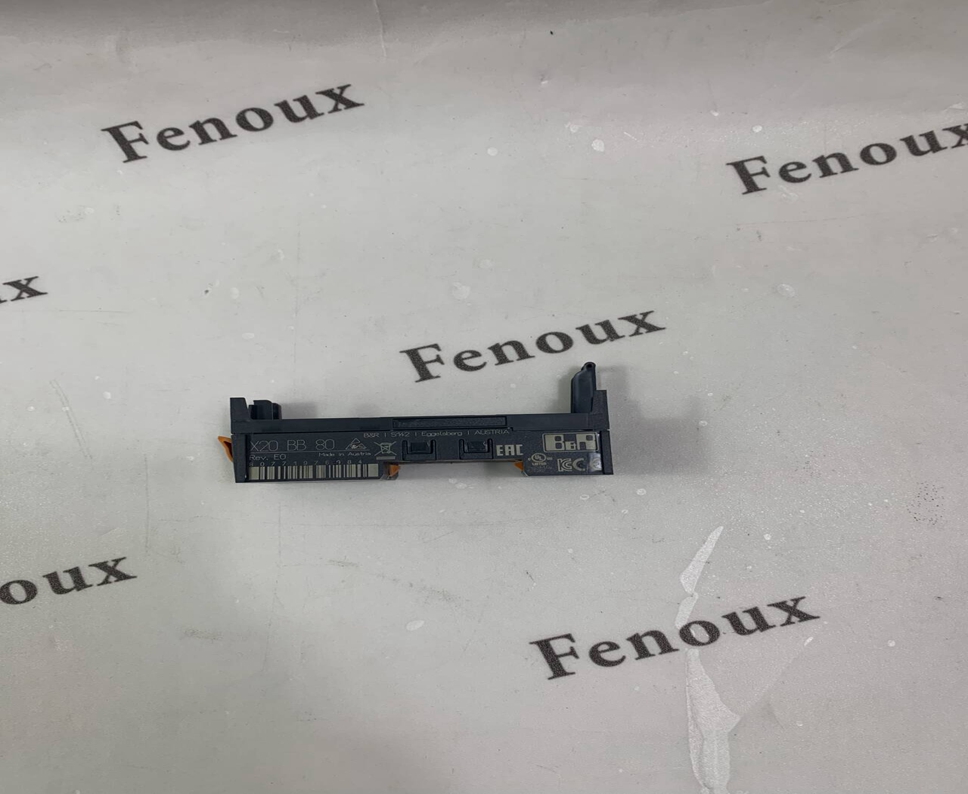

Order 1x X20BB81 or X20BB82 bus base separately
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
