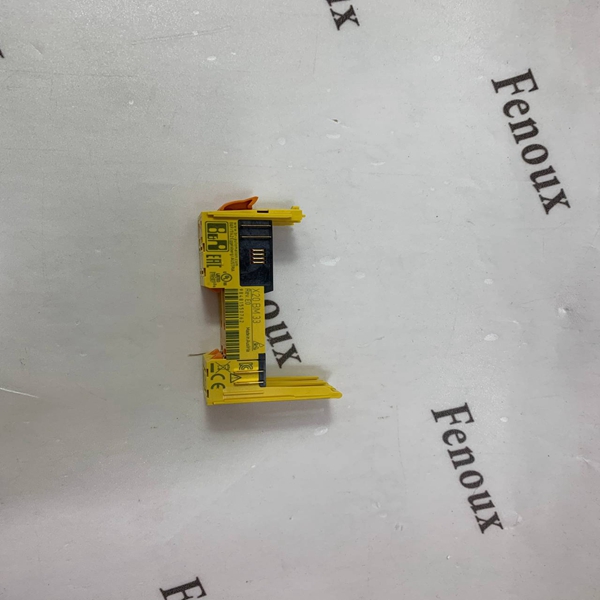

Power supply bus module,for X20 SafeIO power supply
modules, with node number switch, internal I/O power supply
interrupted to the left
Bus modules serve as the basis for all SafeIO modules.
Depending on the bus module type, the internal I/O power supply is connected through or interrupted to the left.
With X20BMx6 bus modules, fixed addresses can be set via node number switches. This type of module at the
beginning of an X20 block always generates a unique address. The subsequent modules then automatically increment
from this address. This simple feature greatly increases the flexibility of applications.
Another advantage: Addresses can be set independently of specific I/O modules; only the necessary bus modules
are required, which is logistically advantageous in terms of the cost and diversity of parts.
Bus module type X20 SafeIO modules X20 SafeIO power supply module
Formation of potential groups possible No Yes
Internal I/O power supply Connected through Interrupted to the left
Manual node number assignment possible No Yes No Yes No Yes
Single-width Yes No
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation.
The modules' electronics are fully compatible with the corresponding X20 modules.
Information:
For simplification purposes, only images and module IDs of uncoated modules are used in this data
sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, Method 4, exposure 21 days
Contrary to the specifications for X20 system modules without safety certification and despite the tests performed,
X20 safety modules are NOT suited for applications with corrosive gases (EN 60068-2-60)!
