X20DI8371 B&R

The filtered status is collected with a fixed offset to the network cycle and transferred in the same cycle. Filtering

takes place asynchronously to the network in multiples of 200 µs with a network-related jitter of up to 50 µs.

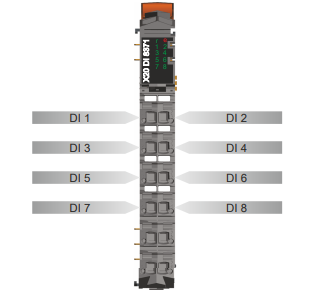

The module is equipped with eight inputs for 1-wire connections. The module is designed for sink input wiring.

• 8 digital inputs

• Sink connection

• 1-wire connections

• Software input filter can be configured for entire module

In addition to the registers described in the register description, the module has additional general data points.

These are not module-specific but contain general information such as serial number and hardware variant.

General data points are described in section "Additional information - General data points" in the X20 system user's

manual.

Fixed modules require their data points to be in a specific order in the X2X frame. Cyclic access occurs according

to a predefined offset, not based on the register address.

Acyclic access continues to be based on the register numbers.

Function model 254 "Bus controller" is used by default only by non-configurable bus controllers. All other bus

controllers can use other registers and functions depending on the fieldbus used.

For detailed information, see section "Additional information - Using I/O modules on the bus controller" in the X20

user's manual (version 3.50 or later)

The module occupies 1 digital logical slot on CAN I/O.
