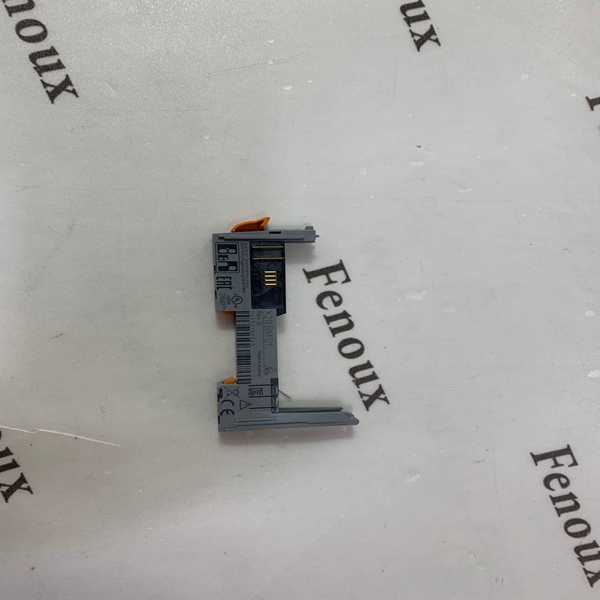

X20DO9322 B&R

Thermal cutoff if overcurrent or short circuit occurs (see value "Peak short circuit current")

Internal inverse diode for switching inductive loads (see section "Switching inductive loads")

1 General information

The module is equipped with 12 outputs for 1-wire connections. The module is designed for source output wiring.

• 12 digital outputs

• Source connection

• 1-wire connections

• Integrated output protection

2 Coated modules

Coated modules are X20 modules with a protective coating for the electronics component. This coating protects

X20c modules from condensation and corrosive gases.

The modules' electronics are fully compatible with the corresponding X20 modules.

For simplification purposes, only images and module IDs of uncoated modules are used in this data

sheet.

The coating has been certified according to the following standards:

• Condensation: BMW GS 95011-4, 2x 1 cycle

• Corrosive gas: EN 60068-2-60, method 4, exposure 21 days

Short description

I/O module 12 digital outputs 24 VDC for 1-wire connections

General information

B&R ID code 0x1B9A 0xD578

Status indicators I/O function per channel, operating state, module status

Diagnostics

Module run/error Yes, using status LED and software

Outputs Yes, using status LED and software (output error status)
