X20IF2772 B&R Communication Interface Module
Brand:B&R
Model number:X20IF2772
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.2kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
X20IF2772 B&R Communication Interface Module
INQUIRE NOW
Products Name: X20IF2772 B&R
PRODUCT DESCRIPTION
With SDO access to POWERLINK object 0x1011/1 on the bus controller, the netX firmware and the configuration
stored on the bus controller are not reset. They can only be overwritten by accessing them again.
This affects objects 0x20C0 and 0x20C8, subindexes 92 to 95.

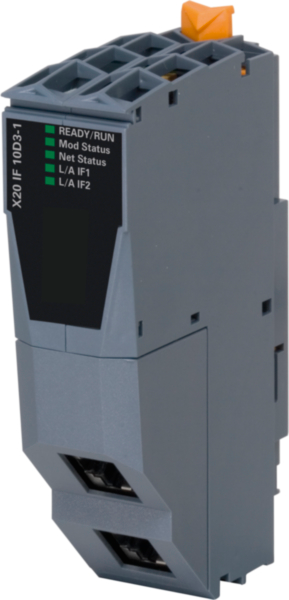

The interface module is equipped with an EtherNet/IP adapter interface. This allows the B&R system (I/O modules,
POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and
easily transfer data in both directions.
The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.
The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes
it easy to implement daisy chain cabling.
• EtherNet/IP adapter (slave)
• Integrated switch for efficient cabling
1.1 Coated modules
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation and corrosive gases.
The modules' electronics are fully compatible with the corresponding X20 modules.
For simplification purposes, only images and module IDs of uncoated modules are used in this data
sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, method 4, exposure 21 days
The starting temperature describes the minimum permissible ambient temperature in a voltage-free state at the
time the coated module is switched on. This is permitted to be as low as -40°C. During operation, the conditions
as specified in the technical data continue to apply.
Information:
It is important to absolutely ensure that there is no forced cooling by air currents in the closed control
cabinet, e.g. due to the use of a fan or ventilation slots.
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
