Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation and corrosive gases.
The modules' electronics are fully compatible with the corresponding X20 modules.
Description:
Model number Short description Figure
Expandable bus controllers

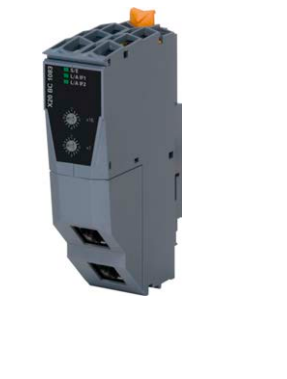

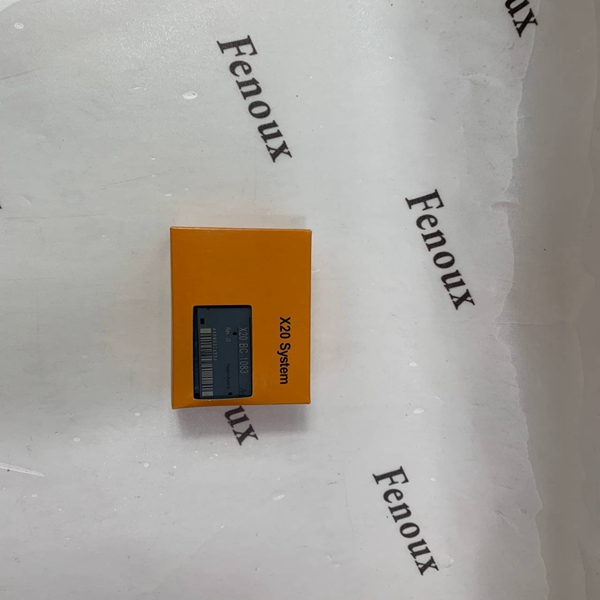

X20BC1083 X20 bus controller, 1 POWERLINK interface, integrated 2-port
hub, supports X20 interface module expansions, 2 RJ45, order
bus base, power supply module and terminal block separately
X20cBC1083 X20 bus controller, coated, 1 POWERLINK interface, integrated
2-port hub, supports X20 interface module expansions, 2 RJ45,
order bus base, power supply module and terminal block separately
Required accessories
System modules for bus controllers
X20PS9400 X20 power supply module, for bus controller and internal I/O
power supply, X2X Link power supply
X20PS9402 X20 power supply module, for bus controller and internal I/O
power supply, X2X Link power supply, supply not electrically isolated
X20cPS9400 X20 power supply module, coated, for bus controller and internal
I/O power supply, X2X Link power supply
System modules for expandable bus controllers
X20BB81 X20 bus base, for X20 base module (BC, HB, etc.) and X20
power supply module, with one expansion slot for an X20 addon module (IF, HB, etc.), X20 locking plates (left and right)
X20AC0SL1/X20AC0SR1 included
X20BB82 X20 bus base, for X20 base module (BC, HB, etc.) and X20
power supply module, with 2 expansion slots for 2 X20 addon modules (IF, HB, etc.), X20 locking plates (left and right)
X20AC0SL1/X20AC0SR1 included
X20cBB81 X20 bus base, coated, for X20 base module (BC, HB, etc.) and
X20 power supply module, with one expansion slot for an X20
add-on module (IF, HB, etc.), X20 locking plates (left and right)
X20AC0SL1/X20AC0SR1 included
X20cBB82 X20 bus base, coated, for X20 base module (BC, HB, etc.) and
X20 power supply module, with two expansion slots for two X20
add-on modules (IF, HB, etc.), X20 locking plates (left and right)
X20AC0SL1/X20AC0SR1 included
Terminal blocks
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
Optional accessories
System modules for expandable bus controllers
X20IF1091-1 X20 interface module, for expandable bus controller, 1 X2X Link
master interface, electrically isolated, order 1x TB704 terminal
block separately
X20 interface module communication
X20IF1041-1 X20 interface module, for DTM configuration, 1 CANopen master interface, electrically isolated, order 1x TB2105 terminal
block separately
X20IF1043-1 X20 interface module, for DTM configuration, 1 CANopen slave
interface, electrically isolated, order 1x TB2105 terminal block
separately
X20IF1051-1 X20 interface module, for DTM configuration, 1 DeviceNet scanner (master) interface, electrically isolated, order 1x TB2105 terminal block separately
X20IF1053-1 X20 interface module, for DTM configuration, 1 DeviceNet
adapter (slave) interface, electrically isolated, order 1x TB2105
terminal block separately
X20IF1061-1 X20 interface module for DTM configuration, 1 PROFIBUS DP
V0/V1 master interface, electrically isolated
X20IF1063-1 X20 interface module, for DTM configuration, 1 PROFIBUS DP
V1 slave interface, electrically isolated
X20IF1083-1 X20 interface - POWERLINK controlled node (slave)
X20IF10A1-1 X20 interface module, for DTM configuration, 1 ASi master interface, electrically isolated, order 1x TB704 terminal block separately
X20IF10D1-1 X20 interface module, for DTM configuration, 1 EtherNet/IP
scanner (master) interface, electrically isolated
X20IF10D3-1 X20 interface module, for DTM configuration, 1 EtherNet/IP
adapter (slave) interface, electrically isolated
X20IF10E1-1 X20 interface module for DTM configuration, 1 PROFINET RT
controller (master) interface, electrically isolated
X20IF10E3-1 X20 interface module, for DTM configuration, 1 PROFINET RT
device (slave) interface, electrically isolated
X20IF10G3-1 X20 interface module for DTM configuration, 1 EtherCAT slave
interface, electrically isolated
X20IF10H3-1 X20 interface module for DTM configuration, 1 Sercos III slave
interface, electrically isolated
