Spacing is based on the width of the Compact-S CPU base.
X20CP048x CPUs can be used to operate 1 interface module.
X20CP048x CPUs can be used to operate 2 interface modules.
Description:

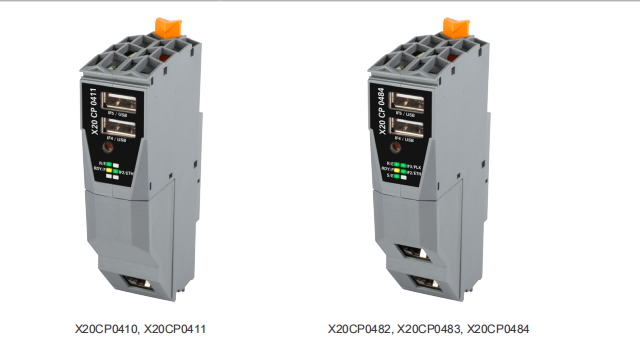

Model number X20CP0410 X20CP0411 X20CP0482 X20CP0483 X20CP0484
Interfaces
IF2 interface
Signal Ethernet
Design 1x RJ45 shielded
Cable length Max. 100 m between 2 stations (segment length)
Transfer rate 10/100 Mbit/s
Transmission
Physical layer 10BASE-T/100BASE-TX
Half-duplex Yes
Full-duplex Yes
Autonegotiation Yes
Auto-MDI / MDIX Yes
IF3 interface
Fieldbus - POWERLINK (V2) managing or controlled node
Type - Type 4
3)
Design - 1x RJ45 shielded
Cable length - Max. 100 m between 2 stations (segment length)
Transfer rate - 100 Mbit/s
Transmission
Physical layer - 100BASE-TX
Half-duplex - Yes
Full-duplex - POWERLINK mode: No / Ethernet mode: Yes
Autonegotiation - Yes
Auto-MDI / MDIX - Yes
IF4 interface
Type USB 1.1/2.0
Design Type A
Max. output current 0.2 A
IF5 interface
Type USB 1.1/2.0
Design Type A
Max. output current 0.2 A
IF6 interface
Fieldbus X2X Link master
On base module
X20BB52, X20BB62 and X20BB72 Compact-S CPU base module with integrated RS232 interface
X20BB57, X20BB67 and X20BB77 Compact-S CPU base module with integrated RS232 and CAN bus interface
Operating conditions
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at elevations above sea
level
0 to 2000 m No limitations
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions
Temperature
Operation
Horizontal installation -25 to 60°C
Vertical installation -25 to 50°C
Derating See section "Derating" of X20PS960x data sheet
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical characteristics
Note Order 1x terminal block X20TB12 separately
Order 1x X20PS9600 or X20PS9602
power supply module separately
Order 1x X20BB5x Compact-S CPU base separately
Order 1x terminal block X20TB12 separately
Order 1x X20PS9600 or X20PS9602 power supply module separately
Order 1x X20BB5x, X20BB6x or X20BB7x
Compact-S CPU base separately
Spacing 4)
X20BB5x 37.5+0.2 mm
X20BB6x - 62.5+0.2 mm 5)
X20BB7x - 87.5+0.2 mm 6)
Table 2: X20CP041x and X20CP048x - Technical data
1) Without USB interface
2) Configurable in Automation Studio.
3) See Automation Help under "Communication / POWERLINK / General information / Hardware - IF/LS" for more information.
