The starting temperature describes the minimum permissible ambient temperature in a voltage-free state at the
time the coated module is switched on. This is permitted to be as low as -40°C. During operation, the conditions
as specified in the technical data continue to apply.
Description:

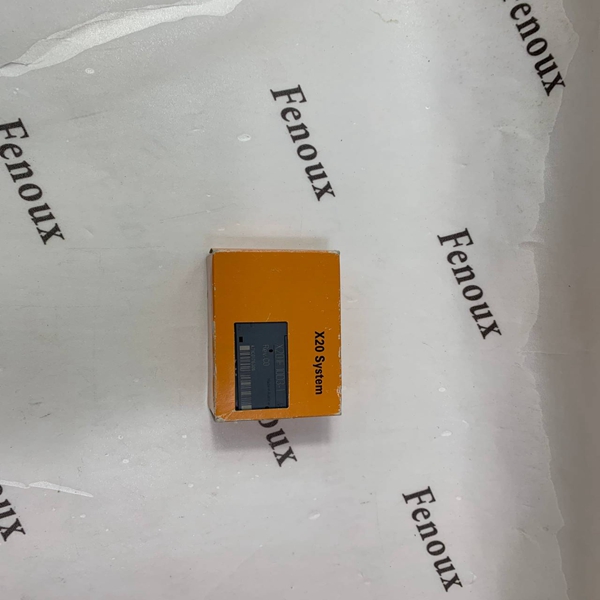

Order number X20IF10D3-1 X20cIF10D3-1
Short description
Communication module EtherNet/IP Adapter (slave)
General information
B&R ID code 0xA71C 0xE237
Status indicators Module status, network status, data transfer
Diagnostics
Module status Yes, using LED status indicator and software
Network status Yes, using LED status indicator and software
Data transfer Yes, using LED status indicator
Power consumption 2 W
Additional power dissipation caused by actuators
(resistive) [W]
-
Certifications
CE Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL cULus E115267
Industrial control equipment
HazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNV GL Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: B (4 g)
EMC: B (bridge and open deck)
LR ENV1
KR Yes
ABS Yes
EAC Yes
KC Yes -
Interfaces
Fieldbus EtherNet/IP Adapter (slave)
Variant 2x shielded RJ45 (switch)
Line length Max. 100 m between 2 stations (segment length)
Transfer rate 10/100 Mbit/s
Transfer
Physical layer 10BASE-T/100BASE-TX
Half-duplex Yes
Full-duplex Yes
Autonegotiation Yes
Auto-MDI/MDIX Yes
Controller netX100
Electrical properties
Electrical isolation PLC isolated from EtherNet/IP (IF1 and IF2)
Operating conditions
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Starting temperature - Yes, -40°C
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing Up to 100%, condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical properties
Slot In the X20 CPU and expandable bus controller X20BC1083
In the X20c CPU and expandable bus controller X20cBC1083
