Bachmann FS221/N

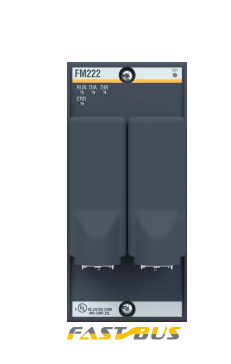

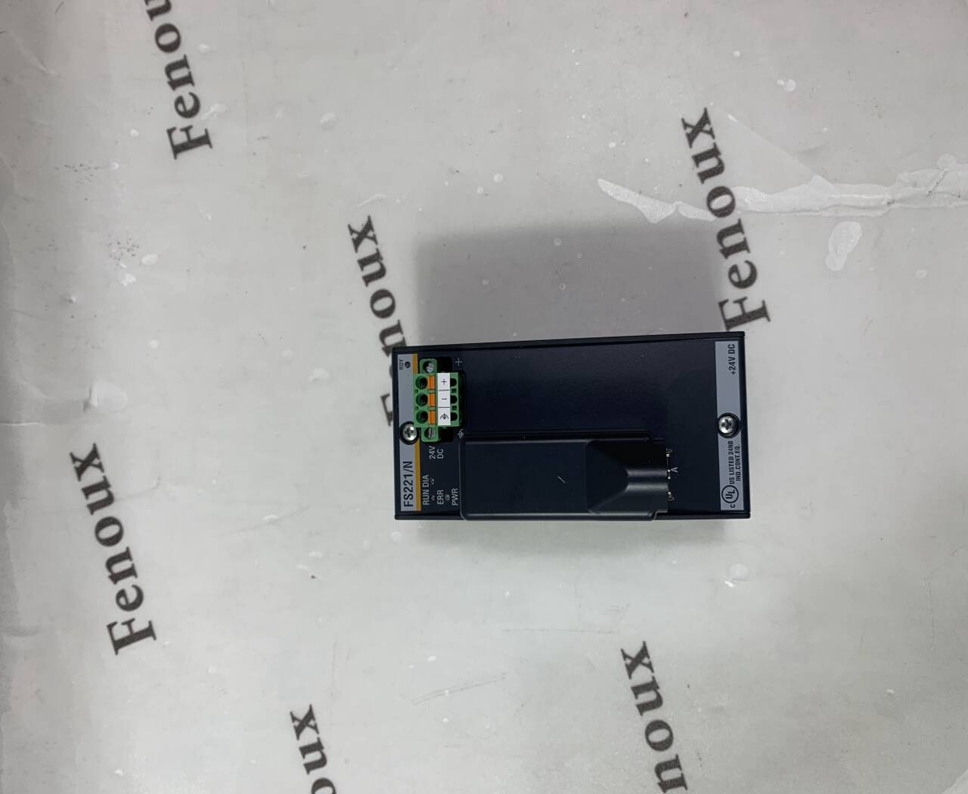

The FASTBUS modules FM221, FM222, FS221/N and FS222/N are

designed to enable distribution of substations over long distances

with a very low signal delay. The power supply integrated in the

FASTBUS slave modules FS221/N and FS222/N can supply the I/O

modules of a substation. The flexible connector concept allows

easy connection via a patch cable or an industrial grade push-pull

plug connection via an adapter.

• FASTBUS master modules with 1 or 2 FO interfaces

• FASTBUS slave modules with integrated power supply

• Up to 15 distributed substations

• Connection technology via robust Harting PushPull® connector

or LC patch cable

• Distances to 2000 m via multimode cable

• Minimal signal delay

• ColdClimate models

Line length 2000 m between the stations,

Total length max: 2300 m

Transmission medium Multimode fiber (50/125 μm and 62.5/125 µm) max. 2000 m

FOC connector type LC

FOC guide wavelength 1310 nm

Number of stations Max. 16 (max. 10 per line)

Link budget > 8 dB (3 dB Reserve)

Diagnostic possibilities

Fiber optic cable – received light output HW: three-color status LED

SW: 0 – 100 %

Integrated power supply

Input voltage 24 VDC (18 to 34 V)

Nominal power (output) 18.25 W

Output current at +5 V 3000 mA 1)

Output current at +15 V 250 mA 1)

Output current at -15 V 200 mA 1))

Approvals / Certificates

General CE, cULus, CCC

Marine DNV GL, LR, ABS, BV

Ambient conditions Standard ColdClimate

Operating temperature -30 to +60 °C -30 to +60 °C

Rel. humidity operation 5 to 95  % without condensation 5 to 95  % with condensation

Storage temperature -40 to +85 °C -40 to +85 °C

Rel. humidity storage 5 to 95  % with condensation 5 to 95  % with condensation

Pollution degree 2 (without condensation; according to

IEC 60664-1)

2 (according to IEC 60664-1)
