Brand： BACHMANN

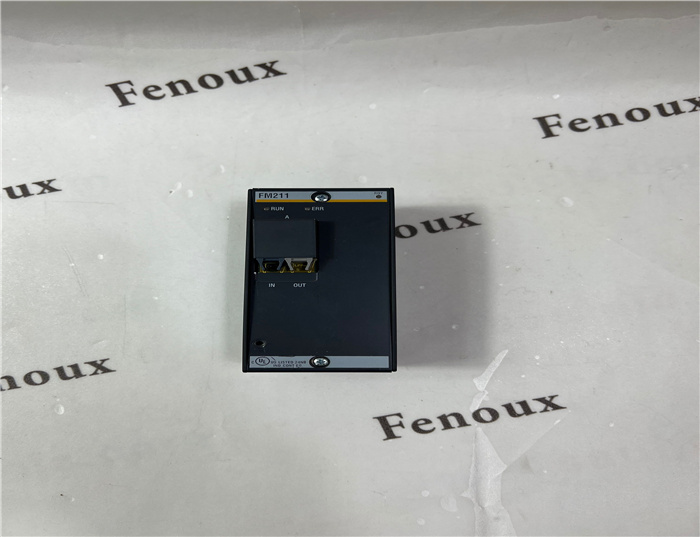

Model number：FM211
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.52Kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

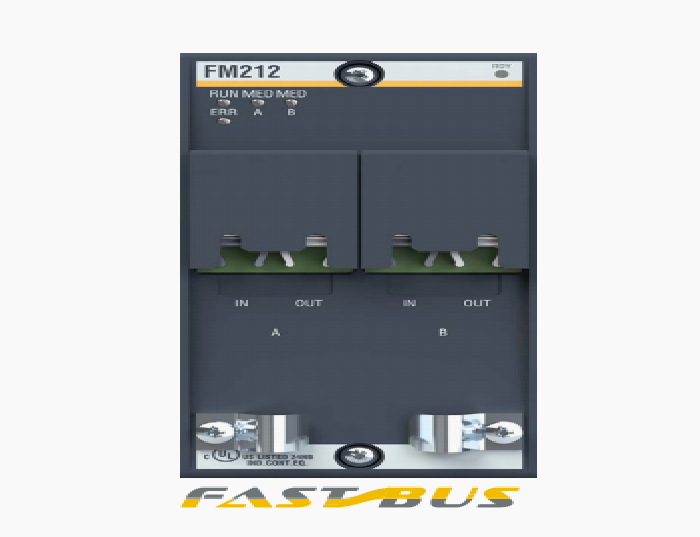

The FASTBUS modules, FM211, FM212, FS211/N, and FS212/N are
designed to enable distribution of substations over long distances
with a very low signal delay. The power supply integrated in the
FASTBUS slave modules, FS211/N and FS212/N can supply the I/O
modules of a substation.
• FASTBUS master modules with 1 or 2 FO interfaces
• FASTBUS slave modules with 1 or 2 FO interfaces
• FASTBUS slave modules with integrated power supply
• Up to 15 distributed substations
• Distances between 2 stations up to:
- 40 m for POF cables
- 150 m for HCS cables
- 180 m for special HCS cables
• Status display (RUN/ERR) and display for fiber type
• Minimal signal delay
FASTBUS interface
Line length 40 / 150 / 180 m between the stations,
Total length max: 1000 m
Transmission medium Plastic Optical Fiber (POF) max. 40 m (POF sometimes also referred to as PMMA)
Hard Cladded Silica (HCS) max. 150 m (HCS sometimes also referred to as Plastic
Silica Fiber (PCF))
Special HCS cable 180 m
Number of stations Max. 16
Integrated power supply
Input voltage 24 VDC (18 to 34 V)
Current consumption Max. 1.2 A at 24 V
Nominal power (Output) 17 W
Output current at +5 V 2800 mA 1)
Output current at +15 V 250 mA 1)
Output current at -15 V 200 mA 1)
Galvanic isolation from the system 500 V
Reverse polarity protection Yes
Approvals / Certificates
General CE, cULus, CCC
Marine DNV GL, LR, ABS, BV, NK, KR, RINA
Ambient conditions
Operating temperature 0 to +60 °C
Rel. humidity operation 5 to 95 % without condensation
Storage temperature -40 to +85 °C
Rel. humidity storage 5 to 95 % without condensation
Pollution degree 2 (without condensation; according to IEC 60664-1)
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
