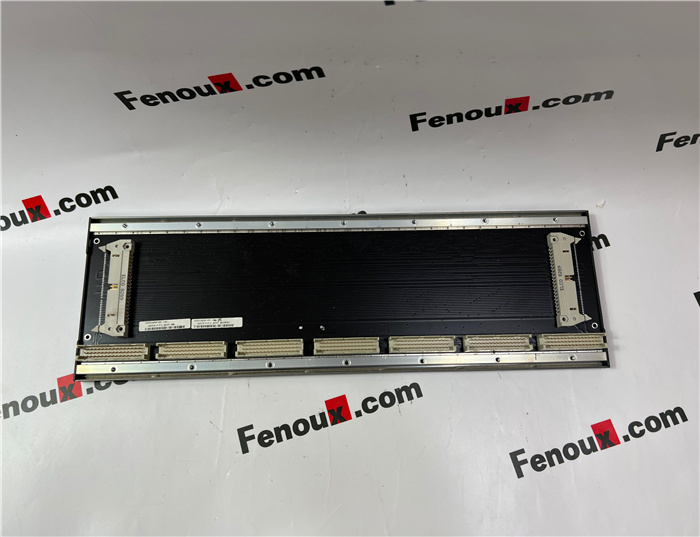

Brand： BACHMANN

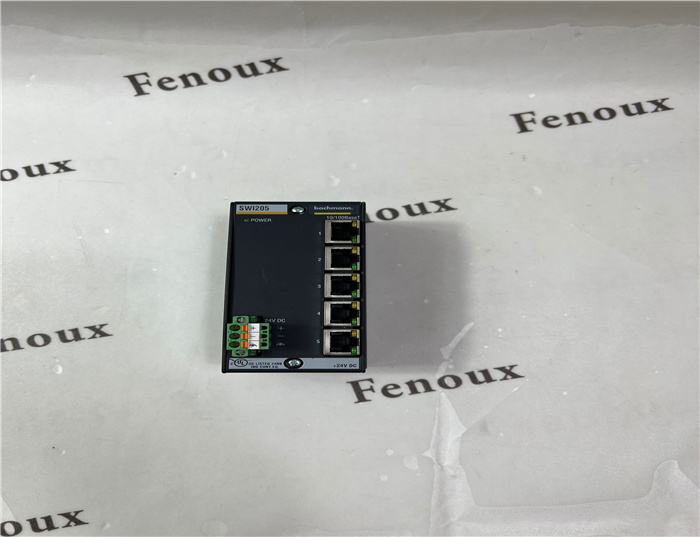

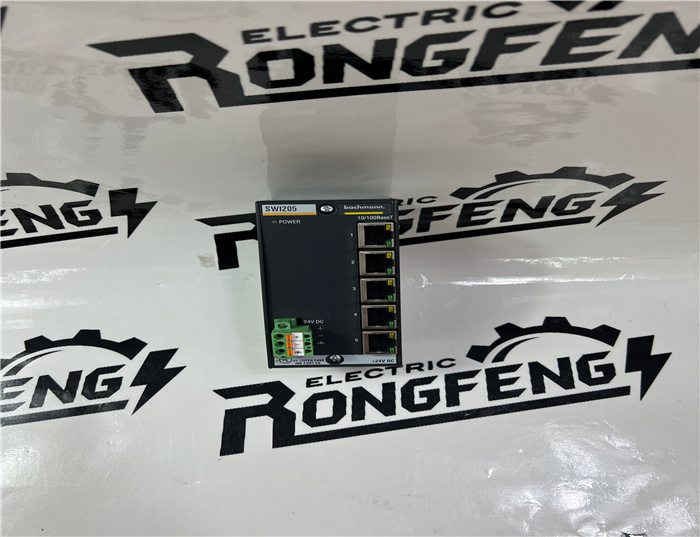

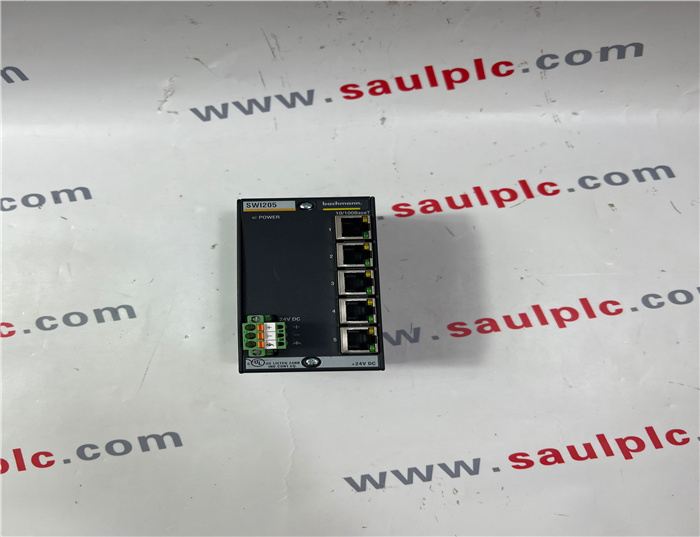

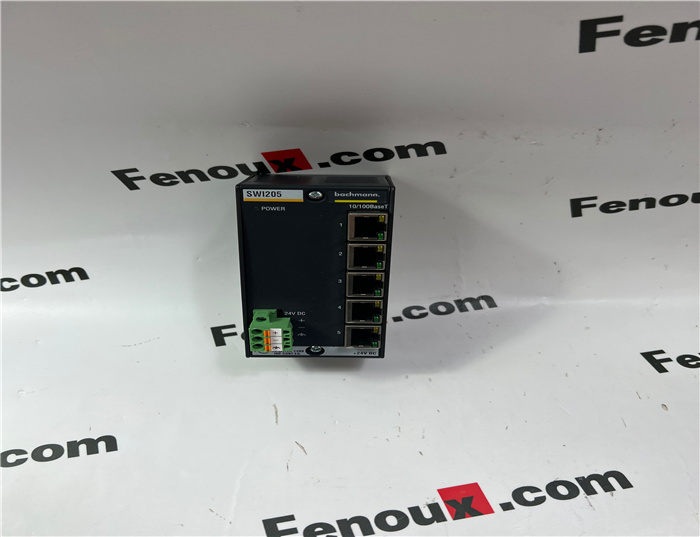

Model number：SWI205
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.52Kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
The digital input / output modules DIO2xx / x
can be used to operate receivers of digital control
devices such as contactors, relays, pneumatic and
hydraulic valves as well as for reading signals from
digitally operating sources such as sensors, photocells or switches.
• 16 / 32 / 48 / 64 or 80 digital channels
• 16 channels can be confi gured as input
or output
• Confi gurable interrupt inputs
• Status display for each channel via LED
• Supply voltage 18 .. 34 V DC
• Supply voltage protected against reverse polarity
• Cost effective and space saving
• Full wiring without extra potential rails
(3-wire, only DIO216)
Inputs
Quantity max. 16 max. 16 16 .. 32 16 .. 32 24 .. 48 32 .. 48
Input voltage range (H) 15 .. 34 V DC
Input voltage range (L) 0 .. 5 V DC
Input delay (normally) 600 μs 0 .. 365 ms 600 μs
Internal resistance 6.8 kOhm
Status indication (LED) green
Interrupt inputs 1 1 8 8 8 8
Outputs
Quantity max. 16 max. 16 max. 16 16 .. 32 24 .. 48 32 .. 48
Output voltage range 18 .. 34 V DC
Output current per channel (max.) 1 A 1 A 0.5 A 0.5 A 0.5 A 0.5 A
Total current (max.) 12 A 16 A 8 A 16 A 20 A 24 A
Status indication (LED) green
Switching frequency
(max., ohmic load) 1 kHz
External power supply
Reverse polarity protection yes
Galvanic isolation from system 500 V
Ambient conditions Standard coldclimate ( )
Operating temperature -30 .. +60°C
Rel. humidity operation 5 .. 95 % without
condensation
5 .. 95% with
condensation
Storage temperature -40 .. +85°C
Rel. humidity storage 5 .. 95 % with condensation
Execution variants
DIO216 digital input / output modules 16x DIO; 24 V / 1 A; 1 group; isolated;
1 interrupt channel; 3-wire technology
DIO216 / 4 digital input / output modules 16x DIO; 24 V / 1 A; 4 groups;
isolated; 1 interrupt channel; 3-wire technology
DIO216 / 4 like DIO216/4; coldclimate design ( )
DIO232 digital input/output modules 16x DIO / 16x DI / 16x DO, 24 V / 0.5 A,
2 groups, isolated; 8 interrupt channels
DIO232 like DIO232; coldclimate design ( )
DIO248 digital input/output modules 16x DIO / 16x DI / 16x DO, 24 V / 0.5 A,
4 groups, isolated; 8 interrupt channels
DIO264 Digital input / output modules 16x DIO / 24x DI / 24x DO, 24 V / 0.5 A,
5 groups, isolated; 8 interrupt channels, CAN-slave
DIO264C digital input / output modules 16x DIO / 24x DI / 24x DO, 24 V / 0.5 A,
5 groups, isolated; 8 interrupt channels
DIO280 digital input / output modules 16x DIO / 32x DI / 32x DO, 24 V / 0.5 A,
6 groups, isolated; 8 interrupt channels
DIO280 like DIO280; coldclimate design
