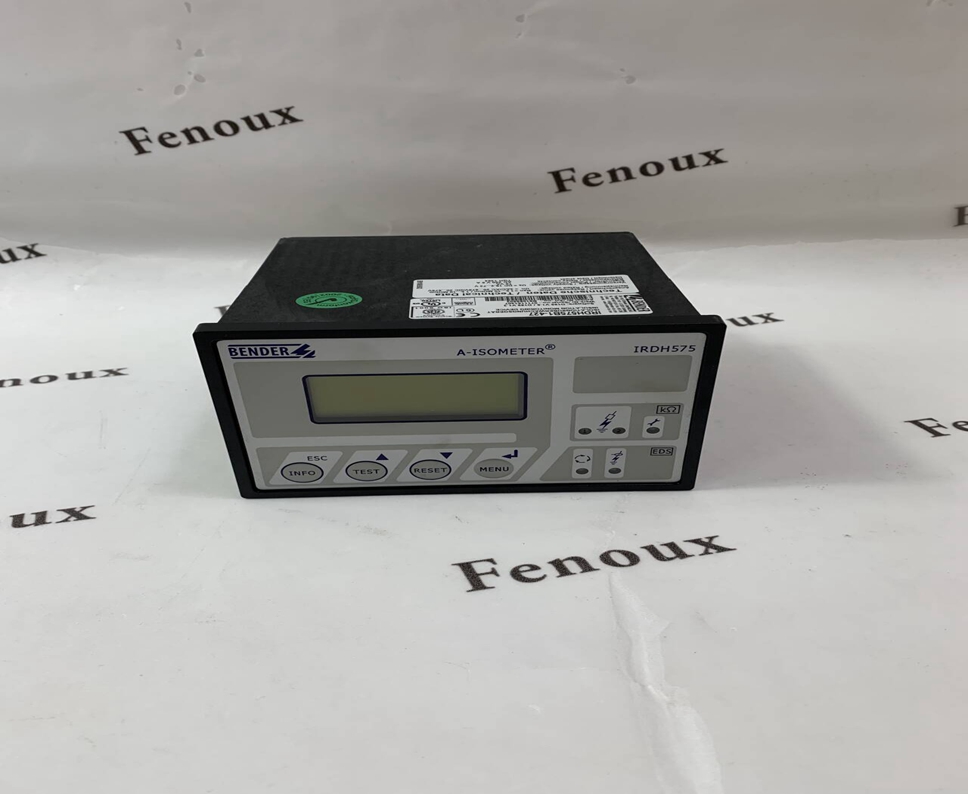

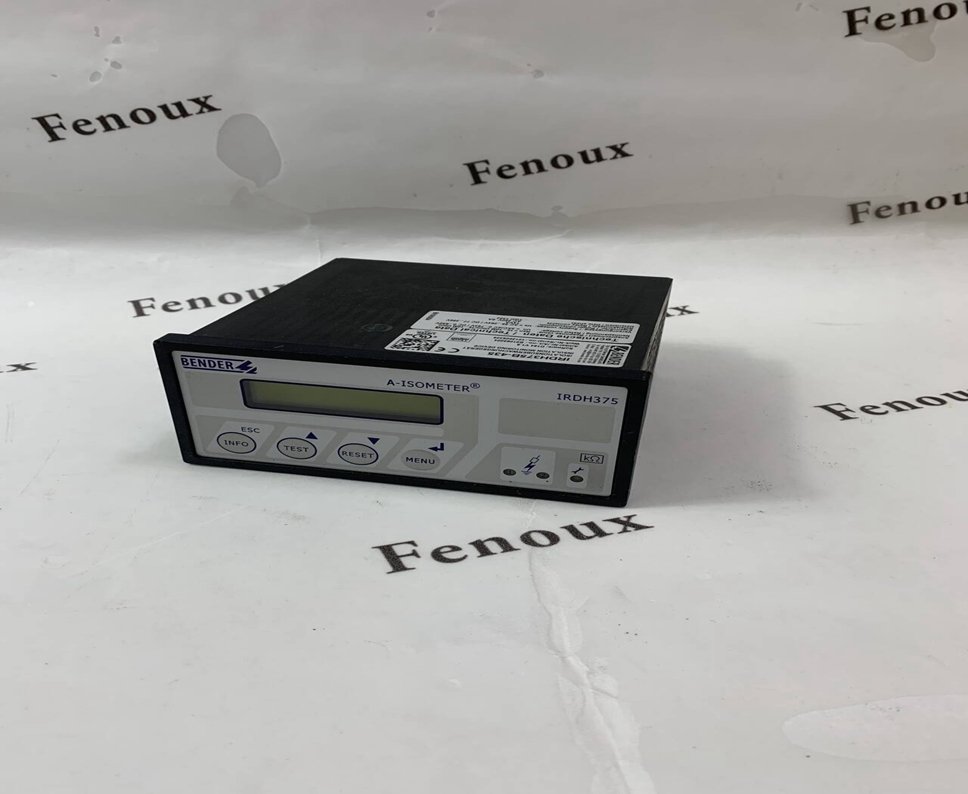

IRDH375B-435 BENDER

The ISOMETER® of the IRDH375(B) series is designed to monitor the insulation resistance of

unearthed main circuits (IT systems) AC, AC/DC 0…793 V resp. DC 0…650 V. The AMPPlus

measurement method meets the particular requirements of modern power supplies which

often include rectifiers, converters, thyristor-controlled DC drives and directly connected

DC components. In these systems often high leakage capacitances against earth occur

due to interference suppression measures. The IRDH375(B) automatically adapts itself to

the existing system conditions.

In combination with a coupling device, the devices can also be used for higher voltages.

An external supply voltage allows de-energised systems to be monitored too.

• Insulation monitoring for unearthed AC,

AC/DC systems 0…793 V, DC 0…650 V

• Nominal voltage extendable via coupling

device

• Two separately adjustable response values

1 kΩ…10 MΩ

• AMPPlus measurement method

• Automatic adaptation to the system

leakage capacitance

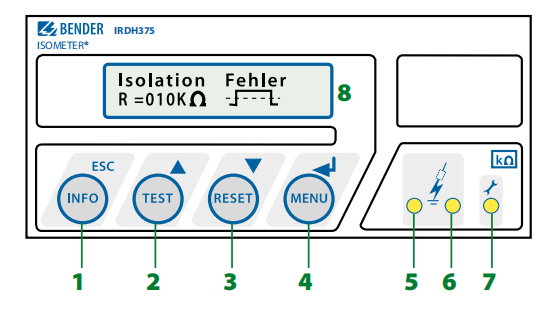

• Info button to display device settings

and the system leakage capacitance

• Continuous self monitoring, with automatic alarm message

• Automatic self test, selectable

• Connection for external kΩ indication

• Test and reset button

• Connection external test and reset button

• Two separate alarm relays with two

potential-free changeover contacts

• N/O or N/C operation

• Alarm relay for system fault (N/C operation)

• Backlit LC display

• RS-485 interface

• Plug-in terminals
