BENDER AGH150W-4
BENDER AGH150W-4 INSULATION MONITORING
Brand： BENDER
Model number：AGH150W-4
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.58kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
BENDER AGH150W-4 INSULATION MONITORING

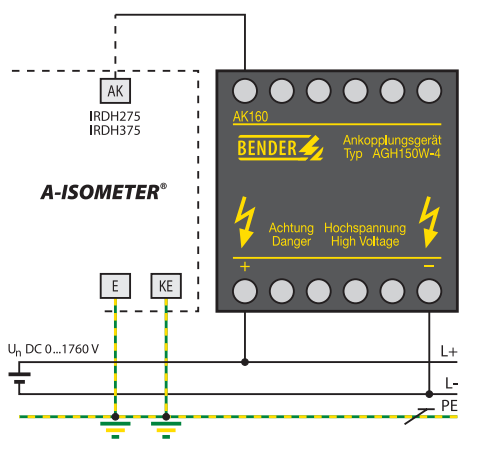

The AGH150W-4 coupling device is designed to extend the nomi-nal voltage range of the A-ISOMETERIRDH265-4/IRDH365-4/IRDH1065B-4 series to DC 0...1760 V.The coupling device isconnected to the system being monitored by two poles and con-nected to the terminal AK of the A-ISOMETERe by means of theterminal AK160.
Technical data coupling device AGH150W-4
Insulation coordination acc, to lEC 60664-1
Rated insulation voltage
Rated impulse voltage/pollution degree
Voltage rangesNominal system voltage Un
DC 1600 V
12 kV/3
DC 0...1760V
Other details
15 g/11 ms40 g/6 ms1 g/10...150 Hz2 g/10...150 Hz- 10°...+55%- 40°...+ 70%3K5continuous operationany positionflat terminals0.2 ...4 mm?/0.2...2.5 mm?IP30IP 20DIN EN 60715/IEC 60715UL94V-0BP109001
Shock resistance lEC 60068-2-27 (during operation)
Bumping lEC 60068-2-29 (during transport)
/ibration resistance lEC 60068-2-6 (during operation)Vibration resistance lEC 60068-2-6 (during transport)
Ambient tempera ture (during operation)
Ambient tempera ture (during storage)
Climatic class acc. to DIN IEC 60721-3-3
Operating mode
Mounting
Connection
Connection properties rigid/flexible
Degree of protection, internal components (DIN EN 60529)Degree of protection, terminals (DIN EN 60529)DIN rail mounting acc. to
Flamma bility class
Operating manual
Weight approx.
900 g
