Bender ISO685-D-B

The ISOMETER® is an insulation monitoring devices in accordance with IEC 61557-8 for

IT systems. The devices are universally applicable in AC, 3(N)AC, AC/DC and DC systems.

AC systems may include extensive DC-supplied loads (such as rectifiers, inverters, variablespeed drives).

• ISOMETER® for IT AC systems with galvanically connected rectifiers or inverters and

for IT DC systems (IT = unearthed systems)

• Automatic adaptation to the existing

system leakage capacitance

• Combination of AMPPlus and other profilespecific measurement methods

• Two separately adjustable response value

ranges of 1 kΩ…10 MΩ

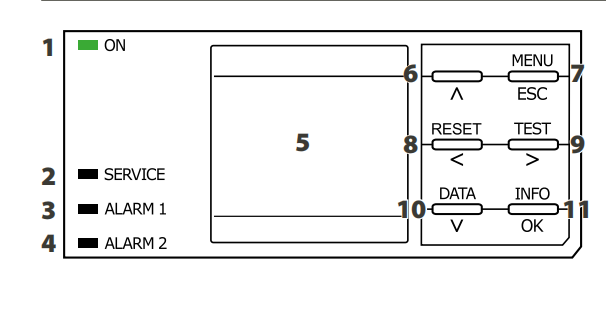

• High-resolution graphic LC display for excellent readability and recording of the

device status

• Connection monitoring (monitoring of

the measuring lines)

• Automatic device self test

• Graphical representation of the insulation

resistance over time (isoGraph)

• History memory with real-time clock (buffer for three days) for storing 1023 alarm

messages with date and time

• Current or voltage output 0(4)…20 mA,

0…400 μA, 0…10 V, 2…10 V (galvanically

separated), which is analogous to the

measured insulation value of the system

• Freely programmable digital inputs and

outputs

• Remote setting via the Internet or

Intranet (Webserver/Option: COMTRAXX®

Gateway).

• Worldwide remote diagnosis via the

Internet

• RS-485/BS (Bender sensor bus) for communication with other Bender devices

• ISOnet: Internal separation of the ISOMETER®

from the IT system to be monitored (e.g.

if several IT systems are interconnected)

• BCOM, Modbus TCP/RTU and web server

• Voltage expandable via coupling devices
