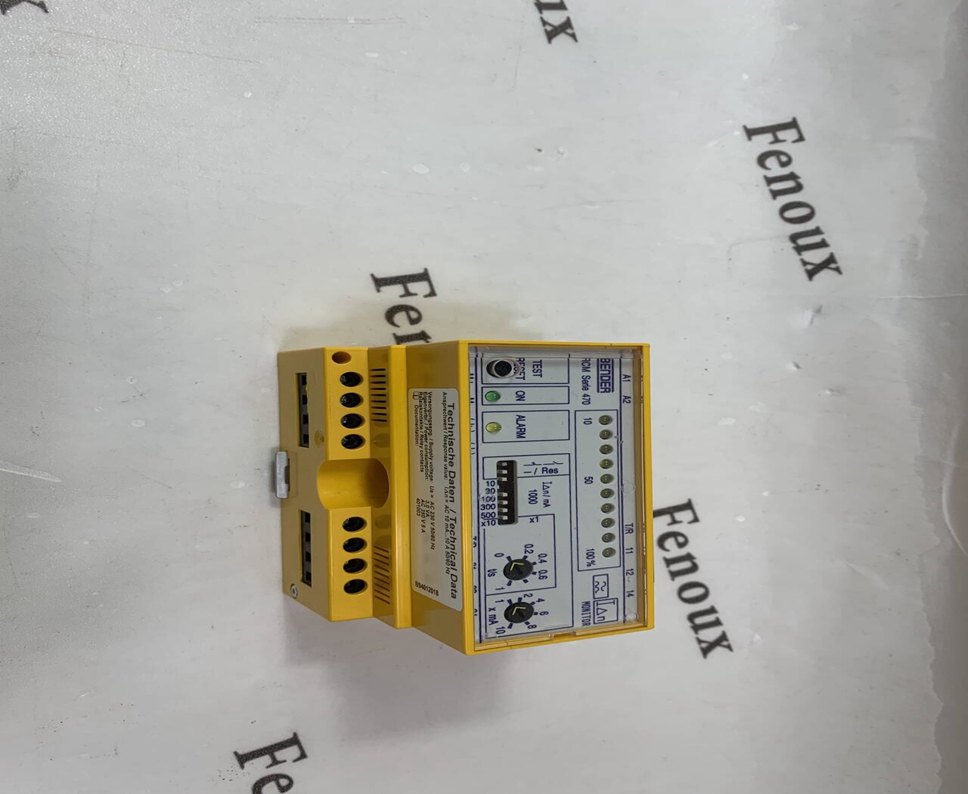

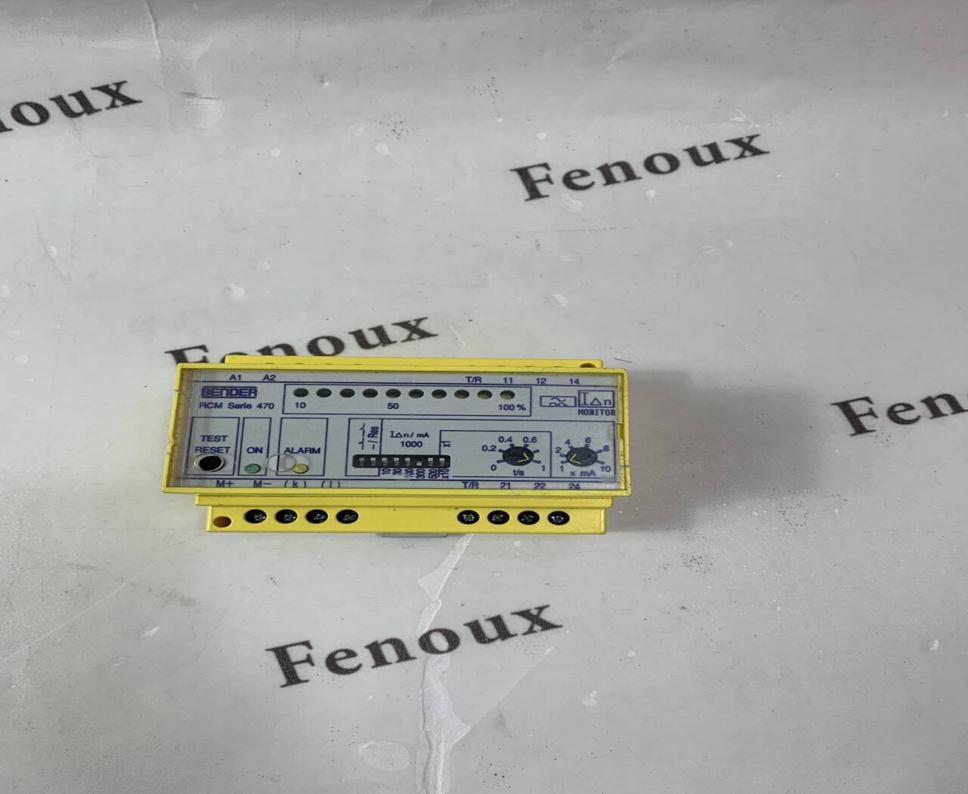

BENDER RCM475LY

Residual current monitoring takes place via an external measuring current transformer.

When the residual current respectively the current exceeds the set response value, the

alarm LED lights and the alarm relay switches after the expiry of the set response delay.

The fault messages can be stored. The fault memory can be reset by pressing the reset

button. The device function can be tested using the test button.

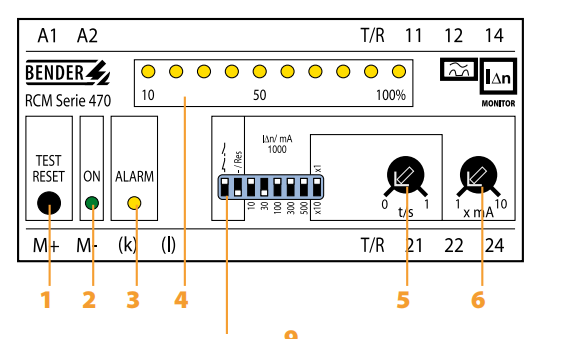

The currently measured value in per cent related to the set response value is indicated on the

LED bar graph indicator. The CT circuit is continuously monitored. In case of wire breakage,

the alarm relay switches and the alarm LED flashes.

 External measuring current transformer

• Response values adjustable

10 mA…10 A/100 A 40…400 Hz

• Response delay, adjustable 0…10 s

• Alarm relay with two potential-free

changeover contacts

• N/O or N/C operation, selectable

• Fault memory behaviour, selectable

• Combined test/reset button

• Connection external test and reset button

• LED bar graph indicator IΔn 0…100 %

• Connection external measuring instrument

IΔn 0…100 %

• CT connection monitoring

• Sealable transparent cover

• External supply voltage

• Type A acc. to IEC/TR 60755
