IR125Y-2B91023013 Bender

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

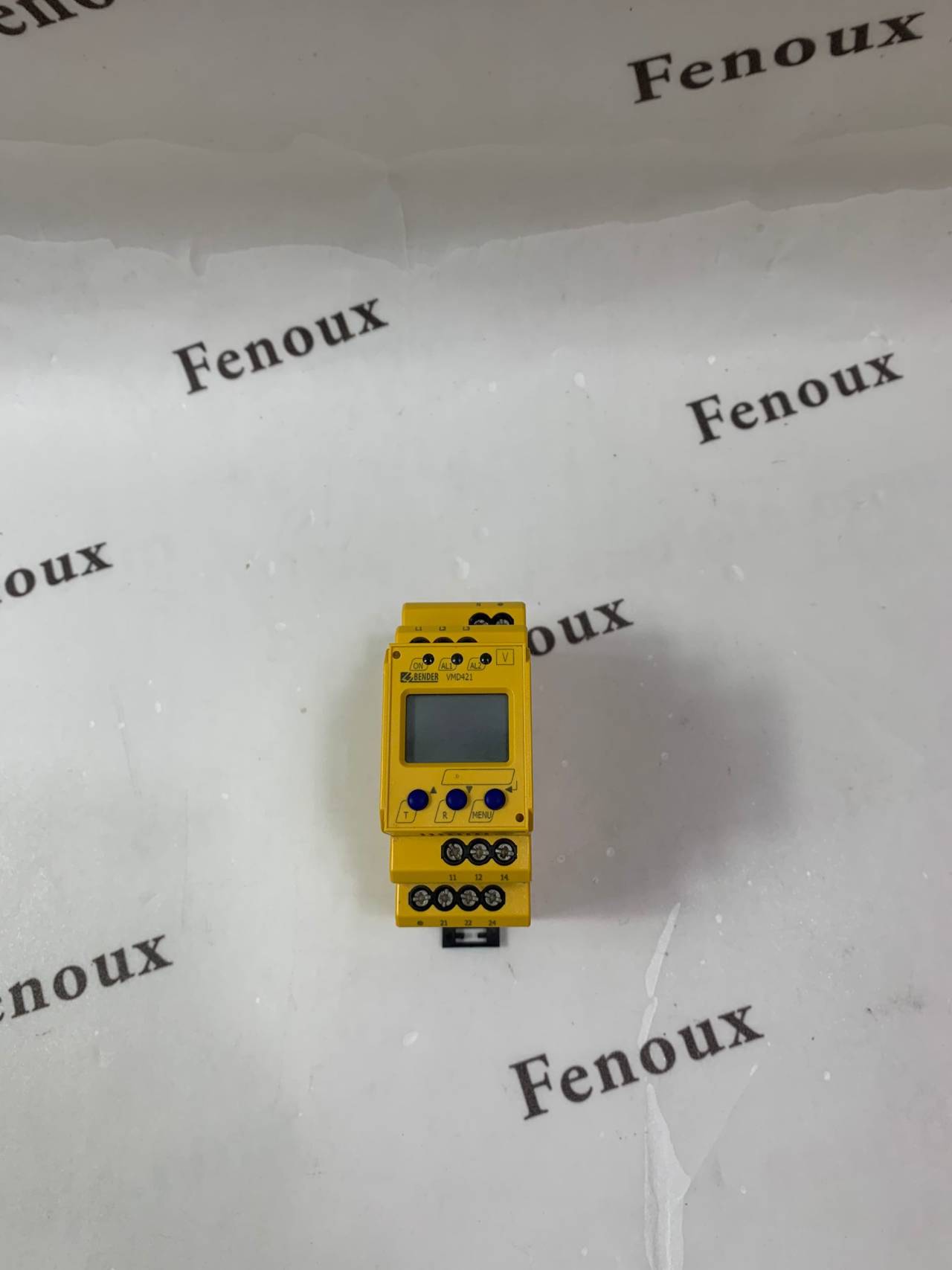

IR125Y-2B91023013 Bender  Output module In Stock

Once the supply voltage US is applied, the start-up delay is activated. Measured values

changing during this time do not influence the switching state of the alarm relays.

Residual current measurement takes place via an external measuring current transformer

of the CTUB100 series. The currently measured value is shown on the LC display. In this

way any changes, for example when circuits are connected to the system, can be recognised

 easily. If the measured value exceeds the set response values, the response delays

ton1/2 begin. Once the response delay ton1/2 has elapsed, the K1/K2 alarm relays switch

and the alarm LEDs AL1/AL2 light up. If the current falls below the release value (response

 value plus hysteresis), the release delay toff. When toff has elapsed, the alarm relays

 return to their initial position and the alarm LEDs AL1/AL2 go out. If the fault memory

is activated, the alarm relays remain in the alarm state and the LEDs light until the reset

button is pressed or

The AC/DC sensitive residual current monitor RCMA420 is designed for monitoring earthed

power supply systems (TN and TT systems) where smooth DC fault currents or residual

currents continuously greater than zero may occur. These are in particular loads containing

six-pulse rectifiers or one way rectifiers with smoothing, such as converters, battery chargers,

construction site equipment with frequency-controlled drives. Currents in single conductors

can be monitored too.

The prewarning stage (50…100 % of the set response value IΔn2) allow to distinguish between

prewarning and alarm. Since the values are measured with measuring current transformers,

the device is nearly independent of the load current and the nominal voltage of the system.

Product details:

IR125Y-2B91023013 Bender  Output module

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Related products:

E-mail: alex@fenoux.com

Tel.: +86 13338369201

Skype: +86  13338369201

WhatsApp: +86  13338369201

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
