IRDH575B1-427 BENDER

The A-ISOMETER° of the lRDH575 series monitors the insulation resistance of unearthedpower supplies (lT systems). lt is suitable for universal use in 3(N)AC, AC/DC and DCsystems. AC systems may include extensive DC-supplied loads, such as converters orthyristor-controlled DC drives. The lRDH575, the insulation fault evaluators of the EDS4...series and the appropriate measuring current transformers can be combined to aninsulation fault location system.

Universal application in 3(N)AC, AC/DCand DC IT systems 20...575 V/340...760 VResponse range 1 kQ...10 MOlnfo key for the indication of variousparameters and the system leakagecapacitance

Comprehensive self-monitoring function including system fault alarm relayInternal/external test and reset button

Two separate alarm relays,N/C or N/0 operation selectable

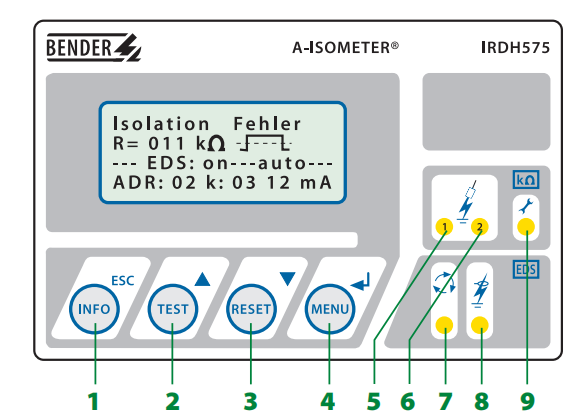

Backlit LC display4 x 16 characters

RS-485 interface

Data memory, system disconnectionand 0/4...20mA current outputExtendable to an insulation faultlocation system for 1080 circuitsAdjustable test current for insulationfault location

Appropriate for EDS4... insulationfault evaluators

99 alarm messages with date and time can be stored in the data memory of the lRDH575.The device also includes lsometer disconnecting relays when several A-SOMETER areoperated in (coupled) IT systems. An integrated RS-485 interface (BMS protocol) allowsinformation exchange with other BENDER devices.Via the 0/4-20mA interface details about the insulation resistance can be transferred tohigher-level control systems.

The function of the lRDH575 is continuously monitored. When a system fault occurs, theassociated alarm LED lights up and the respective alarm relay switches.
