ISO685-D-B-CN Bender

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

ISO685-D-B-CN Bender  Analog  Output module  In Stock

• History memory with real-time clock to store up to 300 timestamped event records

• Galvanically isolated RS-485 interface (BMS protocol) for data exchange with other

Bender devices and communication systems

• Standby contacts and RS-485 communication for operating multiple ground fault detectors

 in systems tied together with tiebreakers or interlocks

• Galvanically isolated analog output, 0(4 ) - 20 mA

1 - External supply voltage used to power device

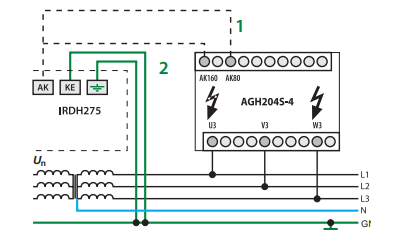

2 - Wiring diagram for a three-phase system. Only two connections

 to the system are necessary to monitor all three phases.

3 Wiring diagram for a single-phase system

4 - Wiring diagram for a DC system

5 - Equipment ground connections

6 - External test button (normally open contact)

7 - External reset button (normally closed contact). When the

terminals are open, the fault message will not be stored.

8 - Standby contact. When the contact is closed, no insulation

measurements take place.

9 - IRDH275: Analog output, electrically isolated: 0 - 400 µA

IRDH275B: Analog output, electrically isolated:

0 - 20 mA or 4 - 20 mA

10 - RS-485 interface:

IRDH275: One-way ASCII stream with measurement status

IRDH275B: Two-way communication with other BENDER

devices, including communication gateways

11 - Alarm relay 1, normally energized or de energized contact

12 - Alarm relay 2/System Fault Relay, normally energized or deenergized

 contact

Product details:

ISO685-D-B-CN Bender  Analog  Output module

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Related products:

E-mail: alex@fenoux.com

Tel.: +86 13338369201

Skype: +86  13338369201

WhatsApp: +86  13338369201

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
