RCMS490-D-2 Bender

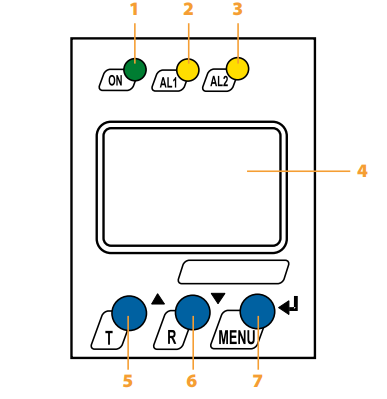

1 - Power On LED “ON” (green); lights when supply voltage is

applied and flashes in the event of system fault alarm

respectively in the event of CT malfunction.

2 - Alarm LED “AL1” (yellow), prewarning; lights when the set

response value IΔn1 is exceeded or flashes in the event of

system fault alarm respectively in the event of CT malfunction

3 - Alarm LED “AL2” (yellow), alarm; lights when the set response

value IΔn2 is exceeded or flashes in the event of system fault

alarm respectively in the event of CT malfunction.

4 - Multi-functional LC display

5 - Test button “T”: to call up the self test.

Arrow up button: parameter change, to move up in the menu

6 - Reset button “R”: to delete saved alarms.

Arrow down button: parameter change, to move down in the

menu

7 - “MENU” button: to call up the menu system.

Enter button: to confirm parameter change.

“ESC” button: press the button > 1.5 seconds.
