Low and high filtering modes are options for a
channel pair. Channels 1 and 2 form a pair, and
channels 3 and 4 are the other pair. You may
select different band pass options on each
channel of a channel pair. However, the
channels within the pair must operate in the
same filtering mode.
You can set up the signal processing so that
the monitor feeds only the channel 1 input to all
four channels. T his feature is called Cascade
Description:

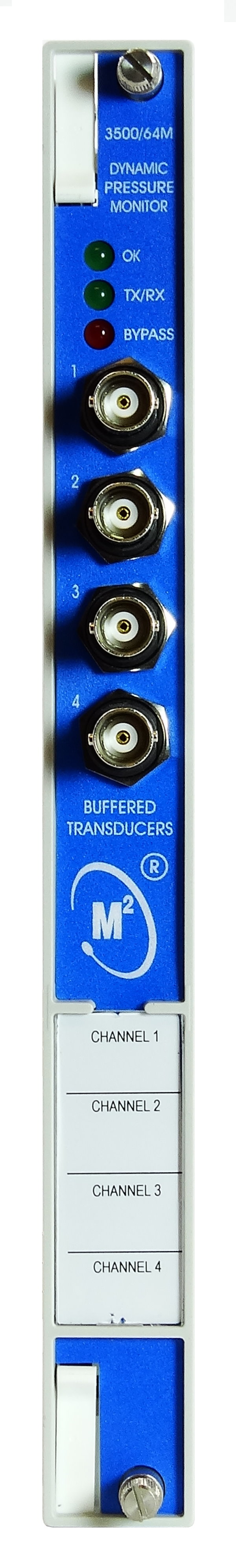

The 3500/64M Dynamic Pressure Monitor is a single slot, fourchannel
monitor that accepts input from high temperature
pressure transducers and uses this input to drive alarms. T he
monitor’s one measured variable per channel is bandpass
dynamic pressure.
You can use the 3500 Rack Configuration Software to
configure the bandpass corner frequencies along with an
additional notch filter. T he monitor provides a recorder output
for control system applications.
The primary purpose of the 3500/64M Dynamic Pressure
Monitor is to provide the following:
l Machinery protection by continuously comparing
monitored parameters against configured alarm
setpoints to drive alarms
l Essential machine information for operations and
maintenance personnel
Each channel, depending on configuration, conditions its
input signal to generate various parameters called
measured variables. You can configure alert and danger
setpoints for each active measured variable.
2 wire
3.3 mA current source @ 22
Vdc (nominal)
Recorder
outputs
+4 to +20 mA
Values are proportional to
monitor full-scale.
The monitor provides
individual recorder values for
each channel.
Monitor operation is
unaffected by short circuits on
recorder outputs.
