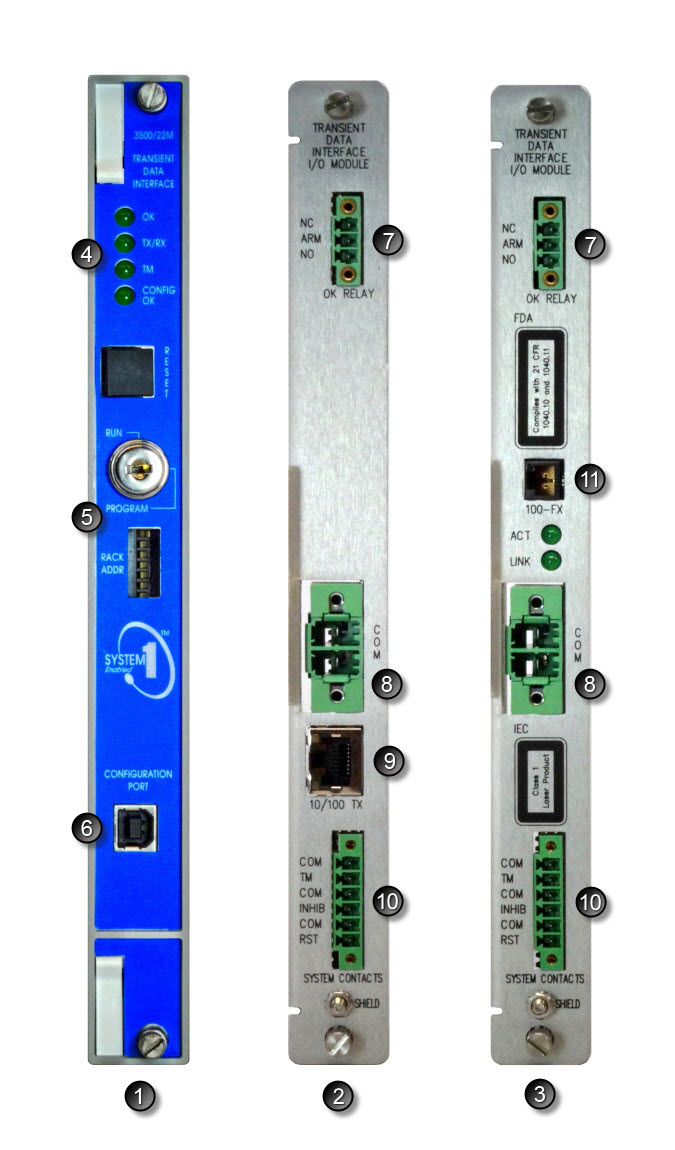

1. Main Module
2. 10 Base-T/100 Base TX (copper) Ethernet I/O Module
3. 100 Base-FX (fiber optic) Ethernet I/O Module
4. LEDs indicate operating status of the module
5. Hardware Switches
6. USB Configuration Port for configuring or retrieving
machinery data
7. OK Relay indicates the OK status of the overall rack
8. Signal Common external grounding terminal
9. RJ-45 Ethernet Port for configuration and data collection
10. System Contacts
11. Fiber Optic Ethernet Port for configuration and data
collection
Description:

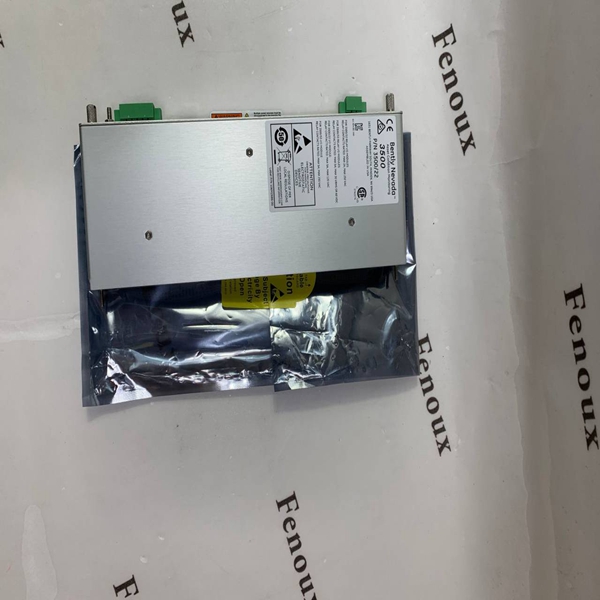

The 3500/22M Transient Data Interface (TDI) is the interface
between the 3500 monitoring system and compatible
software (System 1 Condition Monitoring and Diagnostic
software and 3500 System Configuration software). The TDI
combines the function of a 3500/20 Rack Interface Module
(RIM) with the data collection capability of a communication
processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a
3500 rack. It interfaces with M series monitors (3500/40M,
3500/42M, etc.) to continuously collect steady state and
transient dynamic (waveform) data and pass this data
through an Ethernet link to the host software. Refer to the
Compatibility section at the end of this document for more
information.
Static data capture capability is standard with the TDI.
However, using an optional Channel Enabling Disk will allow
the TDI to capture dynamic and high-resolution transient
data as well. The TDI incorporates the communication
processor function within the 3500 rack.
Although the TDI provides certain functions common to the
entire rack, it is not part of the critical monitoring path and
has no effect on the proper, normal operation of the overall
monitor system for automatic machinery protection. Every
3500 rack requires one TDI or RIM, which always occupies Slot 1
(next to the power supplies).
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
