Unless otherwise noted, the following specifications
are for a 3300 XL 8 mm Proximitor Sensor, extension
cable and 8 mm probe between +18 C and +27 C
(+64 F to +80 F), with a -24 Vdc power supply, a 10
kΩ load, an AISI 4140 steel target, and a probe
gapped at 1.27 mm (50 mils). Performance
characteristics apply to systems that consist solely
of 3300 XL 8 mm components. The system accuracy
and interchangeability specifications do not apply to
transducer systems that are calibrated to any target
other than our AISI 4140 steel target.
Description:

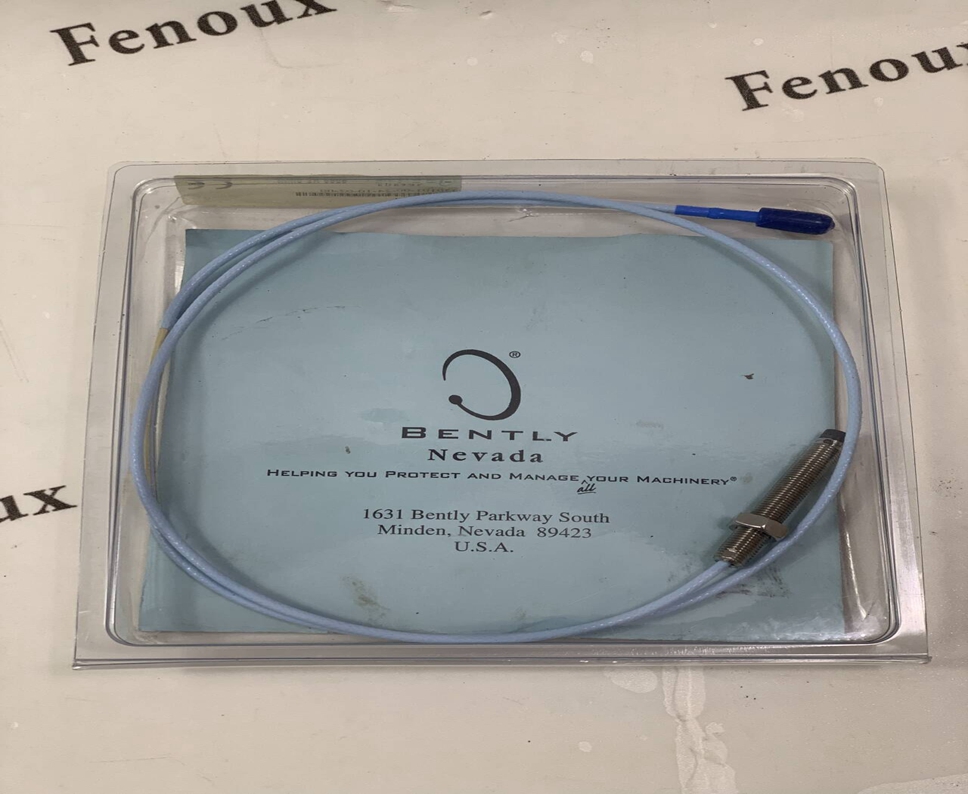

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1, and
One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is directly proportional to the
distance between the probe tip and the observed conductive surface and can
measure both static (position) and dynamic (vibration) values. The system’s
primary applications are vibration and position measurements on fluid-film
bearing machines, as well as Keyphasor* reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy
current proximity transducer systems. The standard 3300 XL 8 mm 5-metre
system also fully complies with the American Petroleum Institute’s (API) 670
Standard (4th Edition) for mechanical configuration, linear range, accuracy, and
temperature stability. All 3300 XL 8 mm proximity transducer systems provide
this level of performance and support complete interchangeability of probes,
extension cables, and Proximitor sensors, eliminating the need to match or
bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and
interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer
system components5. This compatibility includes the 3300 5 mm probe, for
applications in which an 8 mm probe is too large for the available mounting
space6,7.
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
