330102-00-40-10-02-00 BENTLY

1. One-metre systems do not use an extension cable.

2. Proximitor sensors are supplied by default from the

factory calibrated to AISI 4140 steel. Calibration to

other target materials is available upon request.

3. Consult Bently Nevada* Applications Note,

Considerations when using Eddy Current Proximity

Probes for Overspeed Protection Applications, when

considering this transducer system for tachometer or

overspeed measurements.

Description:

4. 3300 XL 8 mm components are both electrically and

physically interchangeable with non-XL 3300 5 mm

and 8 mm components. Although the packaging of

the 3300 XL Proximitor Sensor differs from its

predecessor, its design fits in the same 4-hole

mounting pattern when used with the 4-hole

mounting base, and will fit within the same mounting

space specifications (when minimum permissible

cable bend radius is observed).

5. Mixing XL and non-XL 3300-series 5 mm and 8 mm

system components limits system performance to the

specifications for the non-XL 3300 5 mm and 8 mm

Transducer System.

6. The 3300-series 5 mm probe (refer to Specifications

and Ordering Information p/n 141605-01) uses

smaller physical packaging, but does not reduce the

side view clearances or tip-to-tip spacing

requirements as compared to an 8 mm probe. It is

used when physical (not electrical) constraints

preclude the use of an 8 mm probe. When your

application requires narrow side view probes, use the

3300 NSv* Proximity Transducer System (refer to

Specifications and Ordering Information p/n 147385-

01).

7. 8 mm probes provide a thicker encapsulation of the

probe coil in the molded PPS plastic probe tip. This

results in a more rugged probe. The larger diameter

of the probe body also provides a stronger, more

robust case. We recommend that you use 8 mm

probes when possible to provide optimal robustness

against physical abuse.

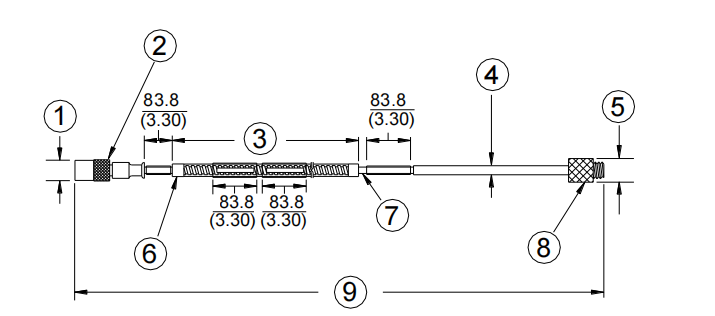

8. Each 3300 XL extension cable includes silicone tape

that you can use instead of connector protectors. We

do not recommend silicone tape for applications that

will expose the probe-to-extension cable connection

to turbine oil.
