Products Name: 330103-00-04-10-02-00 bently Proximity Transducer System

PRODUCT DESCRIPTION

Brand：Bently

Model number：330103-00-04-10-02-00

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.11kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

The 3300 XL 8 mm Proximity Transducer System consists of:

 One 3300 XL 8 mm probe,

 One 3300 XL extension cable1, and

 One 3300 XL Proximitor* Sensor2.

The system provides an output voltage that is directly proportional to the

distance between the probe tip and the observed conductive surface and can

measure both static (position) and dynamic (vibration) values. The system’s

primary applications are vibration and position measurements on fluid-film

bearing machines, as well as Keyphasor* reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy

current proximity transducer systems. The standard 3300 XL 8 mm 5-metre

system also fully complies with the American Petroleum Institute’s (API) 670

Standard (4th Edition) for mechanical configuration, linear range, accuracy, and

temperature stability. All 3300 XL 8 mm proximity transducer systems provide

this level of performance and support complete interchangeability of probes,

extension cables, and Proximitor sensors, eliminating the need to match or

bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible and

interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer

system components5. This compatibility includes the 3300 5 mm probe, for

applications in which an 8 mm probe is too large for the available mounting

space6,7.

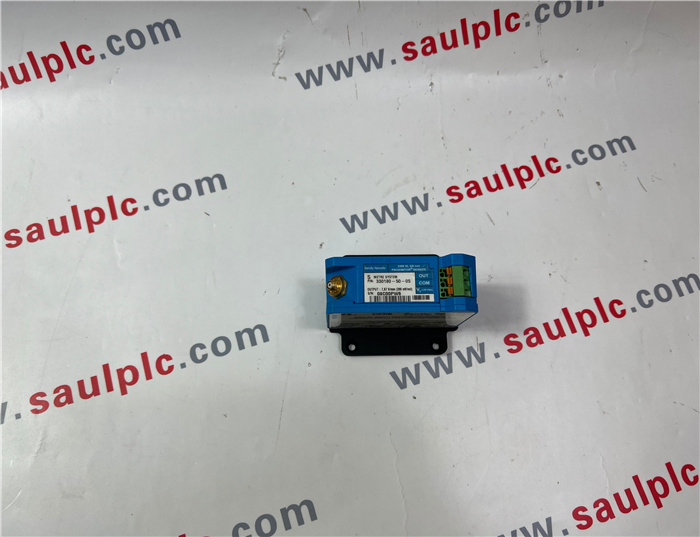

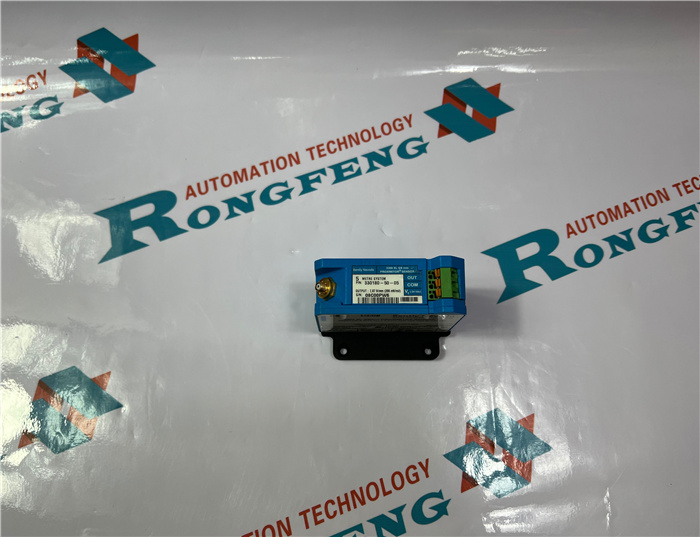

Proximitor Sensor

The 3300 XL Proximitor Sensor incorporates numerous improvements over

previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount

configuration, where it shares an identical 4-hole mounting “footprint” with older

Proximitor Sensor designs. The mounting base for either option provides

electrical isolation and eliminates the need for separate isolator plates. The 3300

XL Proximitor Sensor is highly immune to radio frequency interference, allowing

you to install it in fiberglass housings without adverse effects from nearby radio

frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity

satisfies European CE mark approvals without requiring special shielded conduit

or metallic housings, resulting in lower installation costs and complexity.

The 3300 XL’s SpringLoc terminal strips require no special installation tools and

facilitate faster, more robust field wiring connections by eliminating screw-type

clamping mechanisms that can loosen.

Proximity Probe and Extension Cable

The 3300 XL probe and extension cable also reflect

improvements over previous designs. A patented

TipLoc* molding method provides a more robust

bond between the probe tip and the probe body.

The probe’s cable incorporates a patented CableLoc*

design that provides 330 N (75 lbf) pull strength to

more securely attach the probe cable and probe tip.

You can also order 3300 XL 8 mm probes and

extension cables with an optional FluidLoc* cable

option. This option prevents oil and other liquids

from leaking out of the machine through the cable’s

interior.

Connectors

The 3300 XL probe, extension cable, and Proximitor

sensor have corrosion-resistant, gold-plated

ClickLoc* connectors. These connectors require only

finger-tight torque (the connectors will "click" when

tight), and the specially-engineered locking

mechanism prevents the connectors from loosening.

These connectors require no special tools for

installation or removal.

You can order the 3300 XL 8 mm probes and

extension cables with connector protectors already

installed. We can also supply connector protectors

separately for field installations (such as when an

application must run the cable through restrictive

conduit). We recommend connector protectors for

all installations to provide increased environmental

protection8.

Extended Temperature Range Applications

An extended temperature range (ETR) probe and ETR

extension cable are available for applications in

which either the probe lead or extension cable may

exceed the standard 177 C (350 F) temperature

specification. The ETR probe has an extended

temperature rating for up to 218 C (425 F). The ETR

extension cable rating is up to 260 C (500 F). Both

the ETR probe and cable are compatible with

standard temperature probes and cables, for

example, you can utilize an ETR probe with the

330130 extension cable. The ETR system uses the

standard 3300 XL Proximitor Sensor. Note that when

you use any ETR component as part of your system,

the ETR component limits the system accuracy to

the accuracy of the ETR system.
