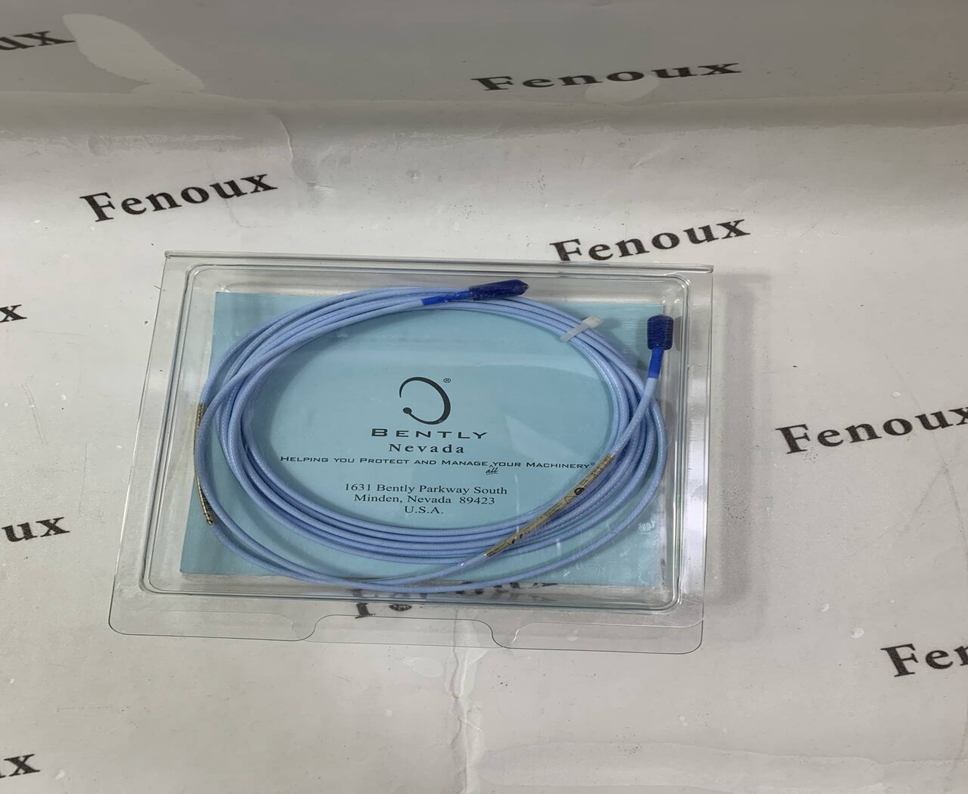

330130-040-00-05 bently

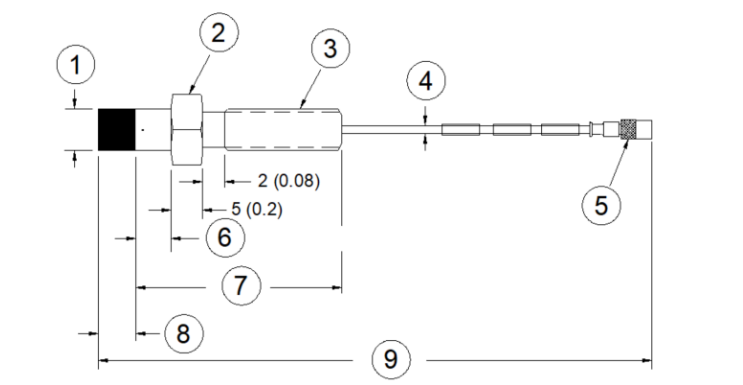

The 3300 XL 8 mm Proximity Transducer System consists of:

o One 3300 XL 8 mm probe,

o One 3300 XL extension cable1

, and

o One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly

proportional to the distance between the probe tip and the

observed conductive surface and can measure both static

(position) and dynamic (vibration) values. The system’s

primary applications are vibration and position

measurements on fluid-film bearing machines, as well as

Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced

performance in our eddy current proximity transducer

systems. The standard 3300 XL 8 mm 5-meter system also

fully complies with the American Petroleum Institute’s (API)

670 Standard for mechanical configuration, linear range,

accuracy, and temperature stability. All 3300 XL 8 mm

proximity transducer systems provide this level of

performance and support complete interchangeability of

probes, extension cables, and Proximitor sensors, eliminating

the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is

backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system

components5. This compatibility includes the 3300 5 mm

probe, for applications in which an 8 mm probe is too large

for the available mounting space6,7.

Shipping Port: Xiamen, China
