The 3300 XL 25 mm Transducer System consists of a separate
25 mm probe, an extension cable, and a 3300 XL 25 mm
Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives
this system a linear range of 12.7 mm (500 mils). Based on
this linear range, the 3300 XL 25 mm Transducer System is
suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the
difference in growth rates between the turbine rotor and the
machine stator (casing).
Description:
The 3300 XL 25 mm probe is designed for
maximum survivability in the harshest steam
turbine DE environments. It can continually
operate and maintain its accuracy in high
temperatures up to 200 °C (392 °F), and can
withstand intermittent high temperatures up to
250 °C (482 °F). The 25 mm probe has both a
front and rear seal which, combined with the
FluidLoc cable (standard on all 25 mm probes),
prevents moisture from entering the probe tip.
Special high-temperature ClickLoc connectors
are also standard on the probe and extension
cable. Each probe and cable are provided with
connector protectors and a disposable
connector protector installation tool to ensure
that the connectors remain free of
contamination. The ClickLoc connector on the
probe lead has a removable collar that
facilitates routing the cable through tight
clearances.

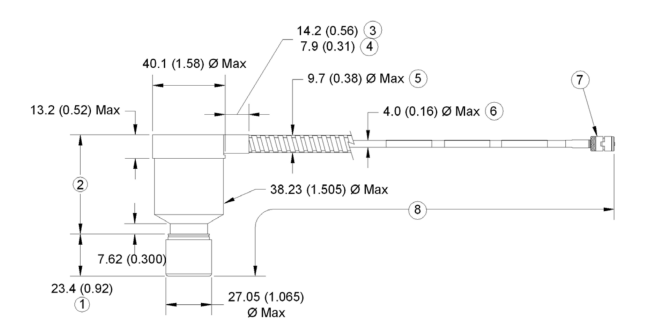

The 3300 XL 25 mm probe is available in many
probe case styles, including 1¼-12 or 1½-12
English threads, M30x2 or M39x1.5 metric
threads, or side or rear exit probes with a 1.06 or
1.50 in diameter smooth probe case.
Additionally, threaded 3300 XL 25 mm probe
