330130-085-00-05 BENTLY

The 3300 XL 8 mm Proximity Transducer System consists of:

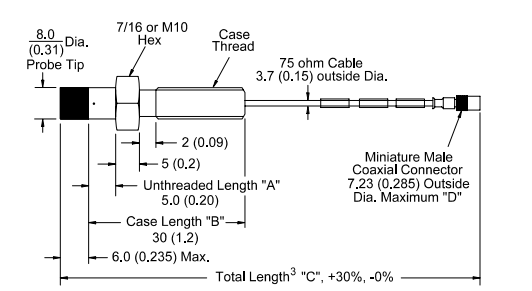

• a 3300 XL 8 mm probe

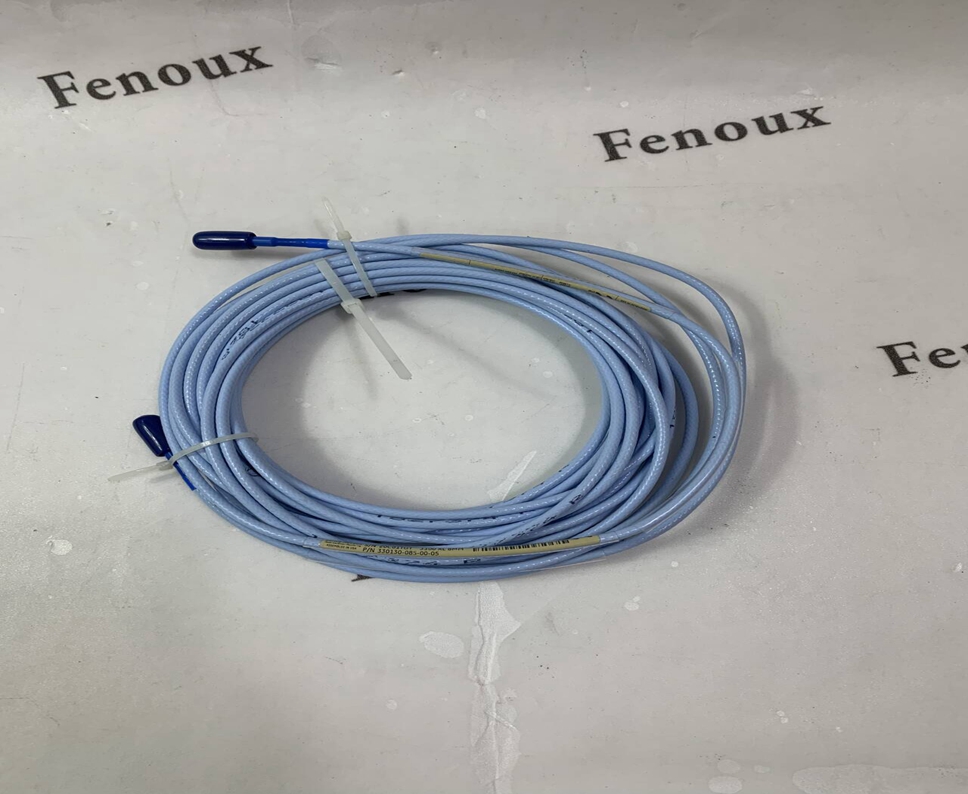

• a 3300 XL extension cable

• a 3300 XL Proximitor® Sensor1

The system provides an output voltage directly proportional to the distance between

the probe tip and the observed conductive surface. It is capable of both static

(position) and dynamic (vibration) measurements, and is primarily used for vibration

and position measurement applications on fluid-film bearing machines, as well as

Keyphasor® and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddy

current proximity transducer system. The standard 3300 XL 8 mm 5 metre system

is also 100% compliant with the American Petroleum Institute’s (API) 670 Standard

(4th Edition) for mechanical configuration, linear range, accuracy, and temperature

stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level of

performance while allowing complete interchangeability of probe, extension cable,

and Proximitor® Sensor without the need for individual component matching or

bench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatible

and interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer system

components4. This includes the 3300 5 mm probe, which is used when an 8 mm

probe is too large for the available mounting space5,6.

Shipping Port: Xiamen, China
