Brand：Bently
Model number：33019210809005
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight: 0.32kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

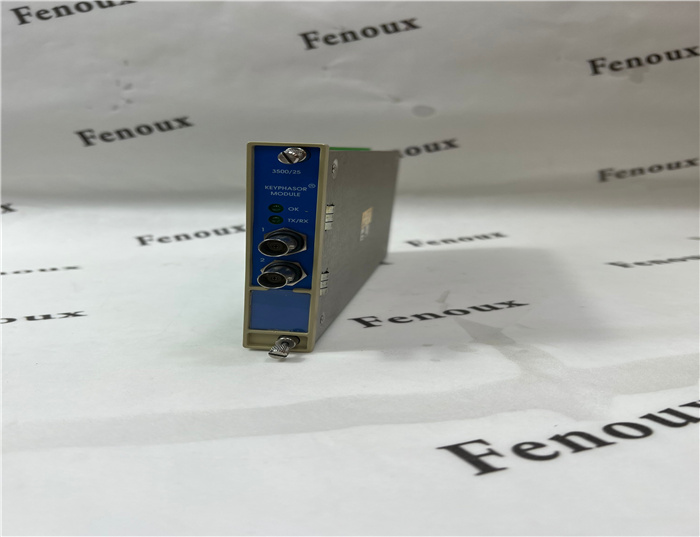

The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module
used to provide Keyphasor signals to the monitor modules in a 3500 rack. The
module receives input signals from proximity probes or magnetic pickups and
converts the signals to digital Keyphasor signals that indicate when the
Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500
Machinery Protection System can accept up to four Keyphasor signals for
normal configuration and up to eight Keyphasor signals in a paired
configuration.
Note: A Keyphasor signal is a once-per-turn or multiple-event-per-turn pulse from a rotating shaft or gear used to
provide a precise timing measurement. This allows 3500 monitor modules and external diagnostic
equipment to measure shaft rotative speed and vector parameters such as 1X vibration amplitude and
phase.
The Enhanced Keyphasor Module is an improved 3500 system module. It offers
expanded Keyphasor signal processing capabilities over the previous design
while maintaining complete downward-compatibility in terms of form, fit and
function with existing Keyphasor modules for use in legacy systems. The
Keyphasor module, PWA 125792-01, is completely replaced by the more recent
149369-01 module.
When a system Keyphasor input is required for Triple Modular Redundant (TMR)
applications, the 3500 system should employ two Keyphasor modules. In this
configuration the modules work in parallel to provide both a primary and
secondary Keyphasor signal to the other modules in the rack.
A system with more than four Keyphasor inputs may use a paired configuration
provided that there are no more than four primary Keyphasor input signals. A
paired configuration requires two consecutive monitoring positions in either the
upper/lower or both half-slot positions. Four Keyphasor modules will accept four
primary and four backup input channels and provide four output channels (one
per module). A configuration of two paired and one non-paired (three Keyphasor
modules total) is also possible. In such a configuration, the user may configure
the one non-paired Keyphasor (order either two 2-channel or one 1-channel and
one 2-channel option)
