A Keyphasor signal is a once-per-turn or multiple-event-per-turn pulse from a rotating shaft or gear used to
provide a precise timing measurement. This allows 3500 monitor modules and external diagnostic
equipment to measure shaft rotative speed and vector parameters such as 1X vibration amplitude and
phase.
INQUIRE NOW
Products Name: 330500 BENTLY NEVADA Input module Brand new
PRODUCT DESCRIPTION
330500 BENTLY NEVADA Asset Condition Monitoring
Brand:Bently
Model number:330500
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.23kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
330500 BENTLY NEVADA Input module Brand new
Description:

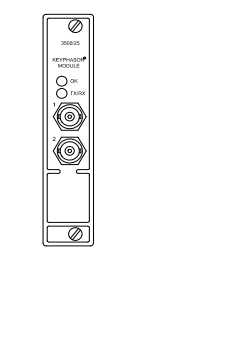

The Enhanced Keyphasor Module is an improved 3500 system module. It offers
expanded Keyphasor signal processing capabilities over the previous design
while maintaining complete downward-compatibility in terms of form, fit and
function with existing Keyphasor modules for use in legacy systems. The
Keyphasor module, PWA 125792-01, is completely replaced by the more recent
149369-01 module.
When a system Keyphasor input is required for Triple Modular Redundant (TMR)
applications, the 3500 system should employ two Keyphasor modules. In this
configuration the modules work in parallel to provide both a primary and
secondary Keyphasor signal to the other modules in the rack.
A system with more than four Keyphasor inputs may use a paired configuration
provided that there are no more than four primary Keyphasor input signals. A
paired configuration requires two consecutive monitoring positions in either the
upper/lower or both half-slot positions. Four Keyphasor modules will accept four
primary and four backup input channels and provide four output channels (one
per module). A configuration of two paired and one non-paired (three Keyphasor
modules total) is also possible. In such a configuration, the user may configure
the one non-paired Keyphasor (order either two 2-channel or one 1-channel and
one 2-channel option)
The Isolated Keyphasor I/O module is designed for applications in which the
Keyphasor signals are tied in parallel to multiple devices and require isolation
from other systems, such as a control system. The Isolated I/O module was
created specifically for Magnetic Pickup applications but is compatible with and
will provide isolation for Proximitor* applications as long as an external power
supply is provided. Note that the intent of this I/O module was primarily to
measure shaft speed and not phase. The module can provide phase
measurements, but this I/O introduces a slightly higher phase shift than the NonIsolated I/O version. Figure 1 shows the amount of phase shift that the Isolated
I/O modules will add at different machine speeds.
Enhanced product features include generation of once-per-turn event signals
from multi-event-per-turn inputs, field-upgradeable firmware, and asset
management data reporting
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Related products:
3500/32
3500/42M
3500/45-01-00
3500/53-03-00
3500/92
3500/94
