This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
l This device may not cause harmful
interference.
l This device must accept any
interference received, including
interference that may cause
undesired operation.
Description:

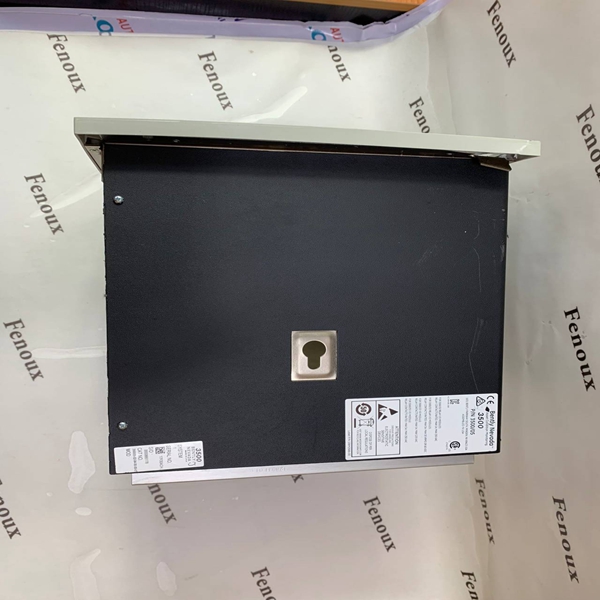

Use the 3500 System rack to mount all 3500 monitor modules
and power supplies. The rack allows you to place 3500
modules near one another, enabling them to easily
communicate, and to mount power supplies necessary to
distribute power to each module.
3500 racks are available in two sizes:
Full-size rack. 19-inch EIA rack with 14 available module slots.
Mini-rack. 12-inch rack with seven available module slots.
You can order 3500 racks in three formats:
Panel mount. This rack format mounts to rectangular cutouts
in panels, and secures to the panel using clamps
supplied with the rack. Wiring connections and I/O modules
are accessible from the rear of the rack.
Rack mount. This rack format mounts the 3500 Rack on 19-
inch EIA rails. Wiring connections and I/O modules are
accessible from the rear of the rack.
Bulkhead mount. This rack format mounts the rack against a
wall or panel when it is not possible to access the rear of the
rack. Wiring connections and I/O modules are accessible
from the front of the rack. The 3500/05 Mini-Rack is not
available in this format.
The power supplies and rack interface module must occupy
the far-left rack positions. The remaining 14 rack positions
(seven rack positions for the mini-rack) are available for any
combination of modules.
If you plan to install internal barriers in the 3500 rack,
consult Specifications and Ordering Information for
3500 Internal Barriers (document 141495) available
from Bently.com.
