3500/22M Bently Nevada Transient Data Interface Module
Brand:Bently
Model number:3500/22M
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.82kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
3500/22M Bently Nevada Transient Data Interface Module
INQUIRE NOW
Products Name: 3500/22M Bently Nevada
PRODUCT DESCRIPTION

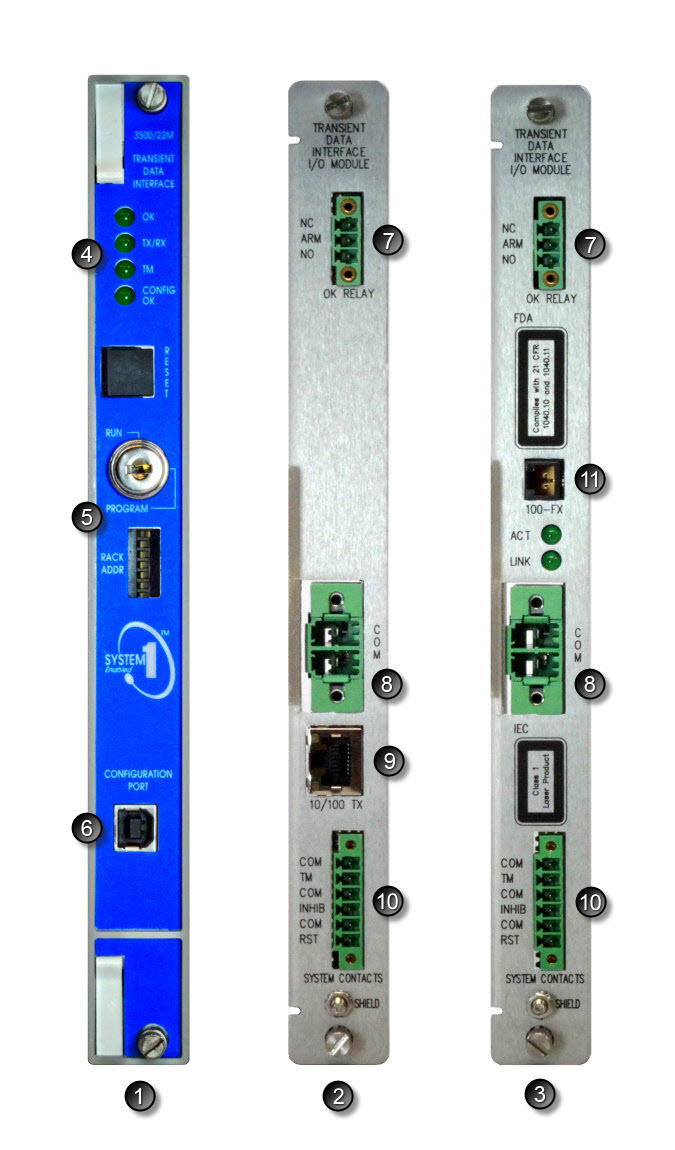

Used to place 3500 rack in
either “RUN” mode or
“PROGRAM” mode. R UN mode
allows for normal operation of
the rack and locks out
configuration changes.
PROGRAM mode allows for
normal operation of the rack
and also allows for local or
remote rack configuration. T he
key can be removed from the
rack in either position, allowing
the switch to remain in either
the RUN or PROGRAM position.
Locking the switch in the RUN
position allows you to restrict
unauthorized rack
reconfiguration. L ocking the
switch in PROGRAM position
allows remote reconfiguration
of a rack at any time.
Description:
The 3500/22M Transient Data Interface (TDI) is the interface
between the 3500 monitoring system and compatible
software (System 1 Condition Monitoring and Diagnostic
software and 3500 System Configuration software). T he TDI
combines the function of a 3500/20 Rack Interface Module
(RIM) with the data collection capability of a communication
processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a
3500 rack. It interfaces with M series monitors (3500/40M,
3500/42M, etc.) to continuously collect steady state and
transient dynamic (waveform) data and pass this data through
an Ethernet link to the host software. Refer to the
Compatibility section at the end of this document for more
information.
Static data capture capability is standard with the TDI.
However, using an optional Channel Enabling Disk will allow
the TDI to capture dynamic and high-resolution transient data
as well. T he TDI incorporates the communication processor
function within the 3500 rack.
Although the TDI provides certain functions common to the
entire rack, it is not part of the critical monitoring path and has
no effect on the proper, normal operation of the overall
monitor system for automatic machinery protection. E very
3500 rack requires one TDI or RIM, which always occupies Slot
1 (next to the power supplies).
