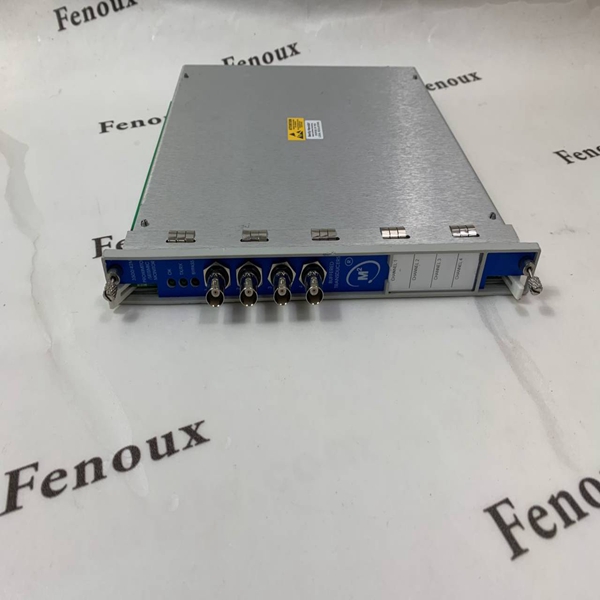

3500/42M Bently Nevada

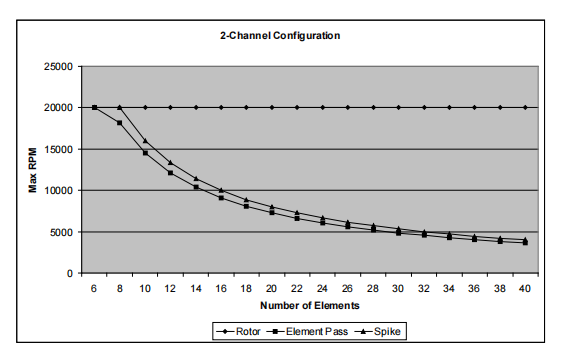

The following graphs show the maximum machine speed allowed for a monitor channel pair configured for REBAM.

The top graph assumes both channels of the channel pair are enabled. The bottom graph assumes only one channel

of a channel pair is enabled. The maximum speed is dependent on the number of rolling elements in the bearing. The

graph assumes that the rotor lowpass filter corner is set at 3.2X the shaft speed and the spike highpass filter corner is

set at 4X the element pass frequency for the outer race (BPFO).

Description:

Indicates when the 3500/42M is

communicating with other

modules in the 3500 rack.

Bypass LED

Indicates when the 3500/42M is in

Bypass Mode.

Buffered

Transducer

Outputs

The front of each monitor has one

coaxial connector for each

channel. Each connector is shortcircuit protected.

Output

Impedance

550 Ω

Transducer

Power Supply

-24 Vdc

Recorder

+4 to +20 mA. Values are

proportional to monitor full-scale.

The monitor provides individual

recorder values for each channel.

Monitor operation is unaffected

by short circuits on recorder

outputs.

Voltage

Compliance

(current output)

0 to +12 Vdc range across load.

Load resistance is 0 to 600 Ω.

Resolution

0.3662 µA per bit

±0.25% error at room

temperature

±0.7% error over temperature

range.

Update rate 100 ms or less.

Shaft Absolute

Buffered

Outputs

The Shaft Absolute I/O modules

have one output for each channel

group. Each output is short-circuit

protected.

Shaft Absolute

Output

Impedance

300 Ω

Signal Conditioning

Note: Specified at +25 ºC (+77 ºF) unless otherwise noted.

Radial Vibration

Frequency

Response

Direct filter

User-programmable, single-pole,

-3db at 4 Hz to 4000 Hz or 1 Hz to

600 Hz, ± 1% accuracy.

Gap filter

-3 dB at 0.09 Hz.

Not 1X filter

60 cpm to 15.8 times running

speed. Constant Q notch filter.

Minimum rejection in stopband of

-34.9 dB.

Smax

0.125 to 15.8 times running

speed.

1X and 2X

Vector filter

Constant Q Filter. Minimum

rejection in stopband of -57.7 dB.

Note: 1X & 2X Vector, Not 1X, and Smax

parameters are valid for machine speeds

of 60 cpm to 60,000 cpm.

Accuracy

Direct and Gap

Exclusive of filtering, within

±0.33% of full-scale typical, ±1%

maximum.

1X and 2X

Within ±0.33% of full-scale

typical, ±1% maximum.
