If the application is at the transition between the low current region and the high current
region, the most appropriate choice is to select the Low Current option (with gold-plated
contacts). If the gold plating is damaged by excessive load, the contacts will still behave as
standard silver contacts.
Description:

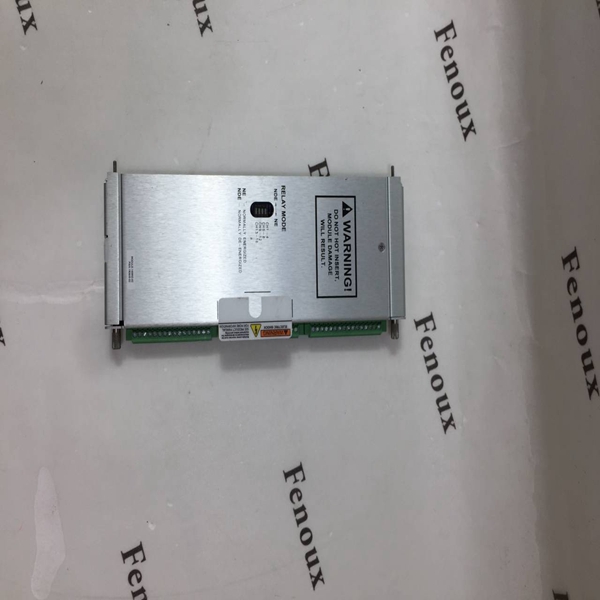

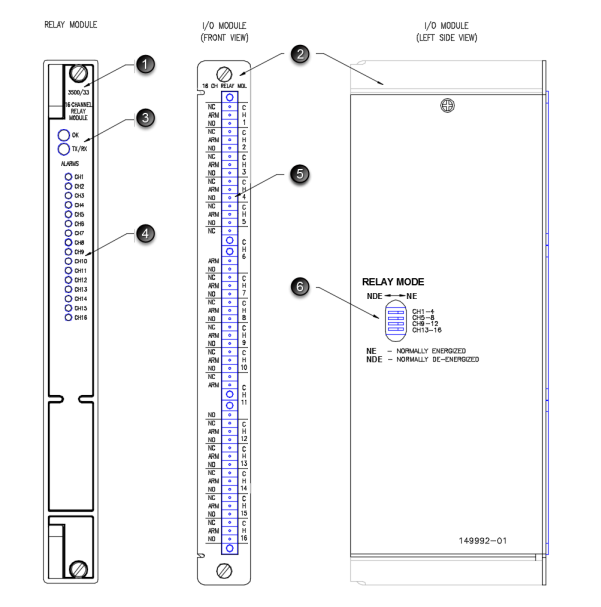

l The 3500/33 16-Channel Relay Module
requires the 3500 Rack Config, version 3.3
or later.
l The 3500/33 requires the 3500 Data
Acquisition Software, version 2.40 or later.
l The 3500/33 16-Channel Relay Module
requires the 3500 Data Display Software,
version 1.40 or later.
l When ordered with the multiple
approvals option (02), the 3500 monitor
is certified to Zone 2 standards, including
ATEX and North American zones.
l The Zone 2 standards specify increased
spacing requirements at higher voltages.
The 3500/33 16-Channel Relay Module
does not meet these spacing
requirements. Thus, the module ordered
with the multiple approvals option is
limited to a lower voltage than those with
the other approvals options.
l Using higher voltages violates the
hazardous area certificates associated
with the multiple approvals option.
l The North American Division 2 standards
associated with the CSA-only approvals
option (-01) have been de-rated to 30
Vrms to comply with 61010-1 type test
requirements.
l If the 3500/3316-Channel Relay Module is
part of a functional safety (SIL) system,
the functional safety certificate requires
the restricted voltage. Higher voltages are
not allowed for functional safety (SIL)
systems.
