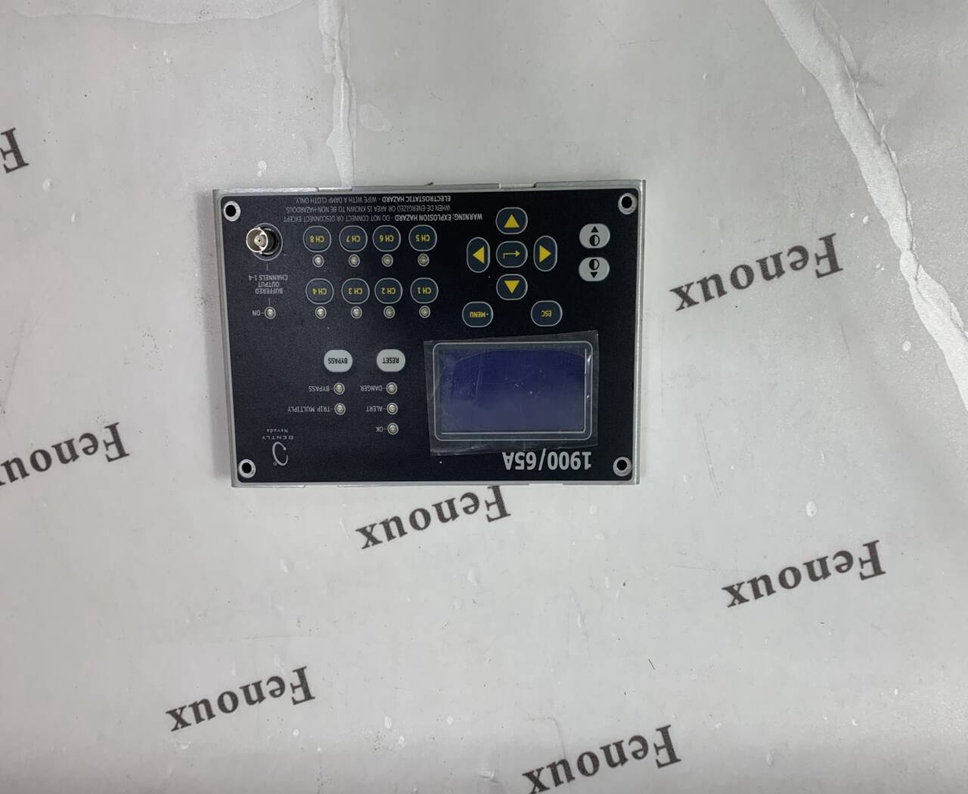

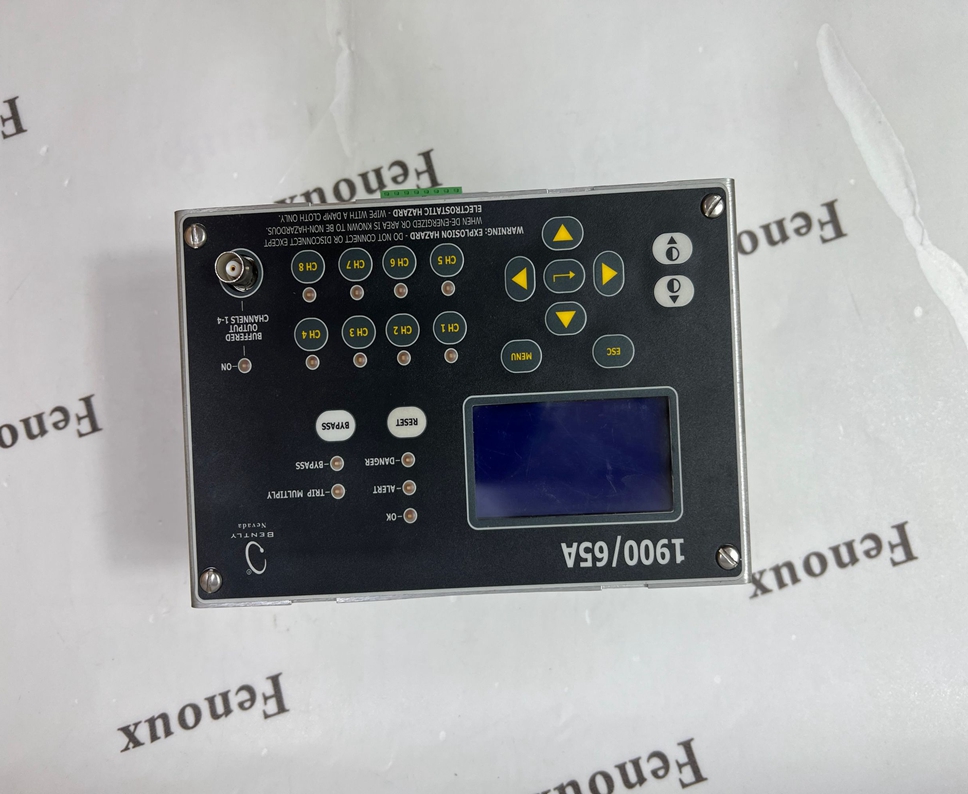

bently 1900/65A

The 1900/65A General Purpose Equipment Monitor is

designed to continuously monitor and protect equipment

that is used in a variety of applications and industries. The

monitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit from

continuous monitoring and protection.

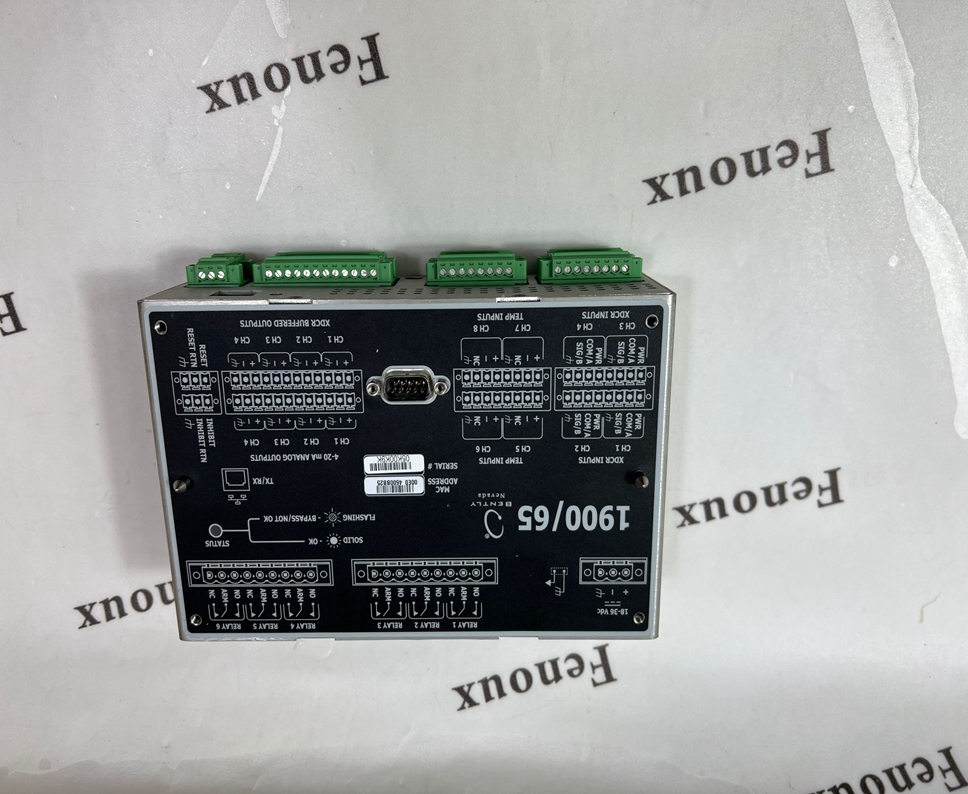

Inputs

The 1900/65A provides four transducer inputs and four

temperature inputs. Software can configure each transducer

input to support 2- and 3-wire accelerometers, velocity

sensors or proximity sensors. Each temperature input

supports Type E, J, K, and T thermocouples, and 2- or 3-wire

RTDs.

Outputs

The 1900/65A provides six relay outputs, four 4-20 mA

recorder outputs, and a dedicated buffered output. The user

can use the 1900 Configuration software to configure the

relay contacts to open or close according to the OK, Alert and

Danger statuses of any channel or combination of channels,

and to provide data from any variable from any channel on

any recorder output. The dedicated buffer output can provide

the signal for each transducer input.
